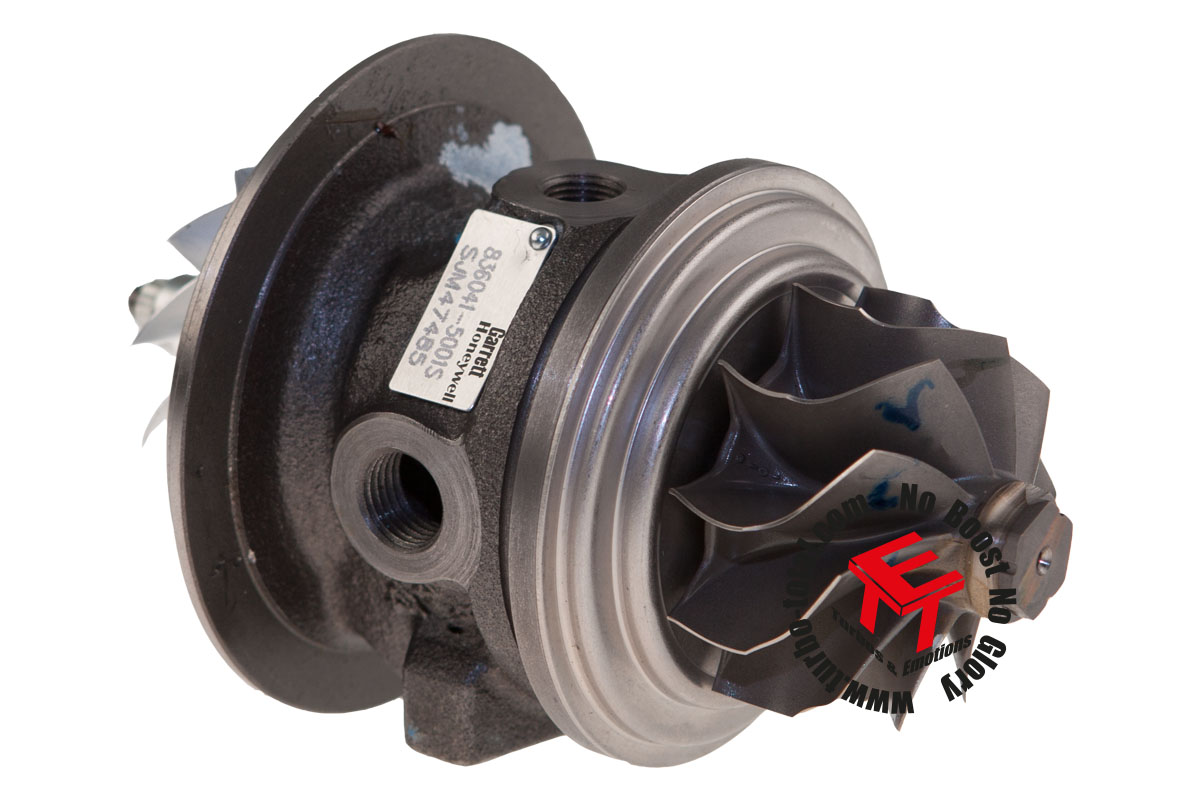

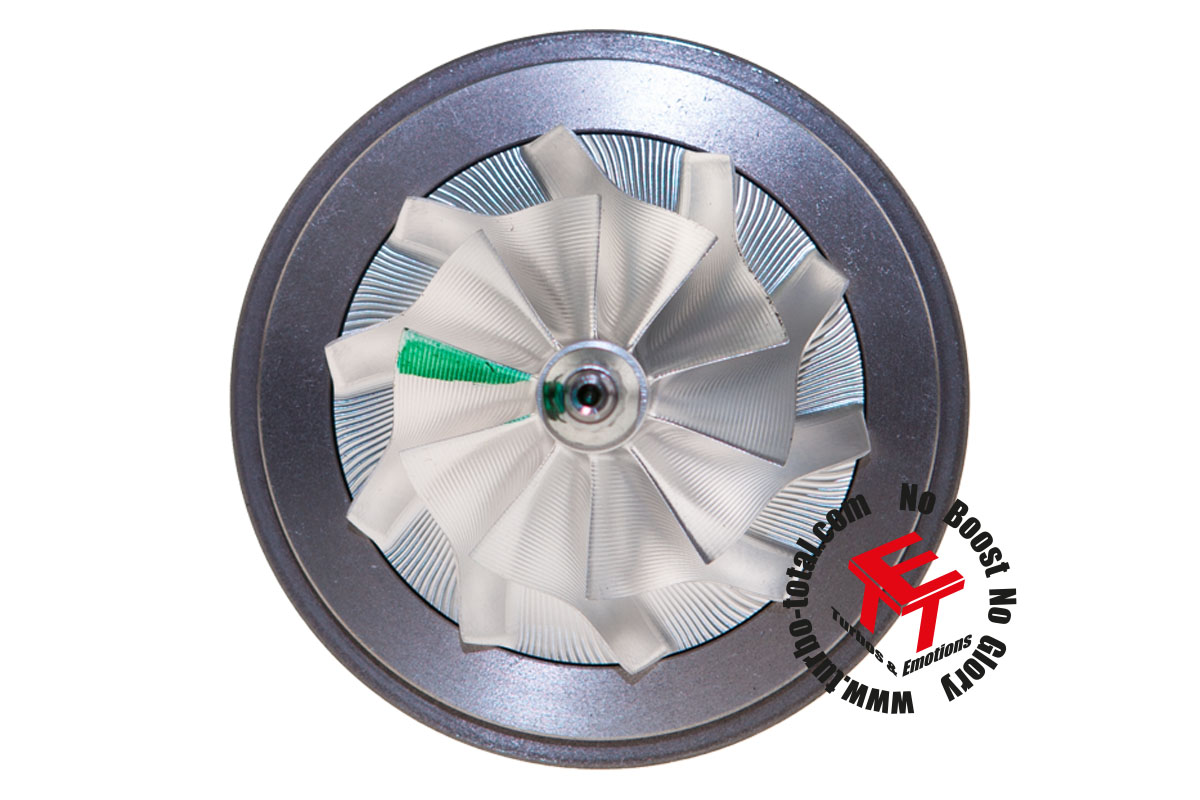

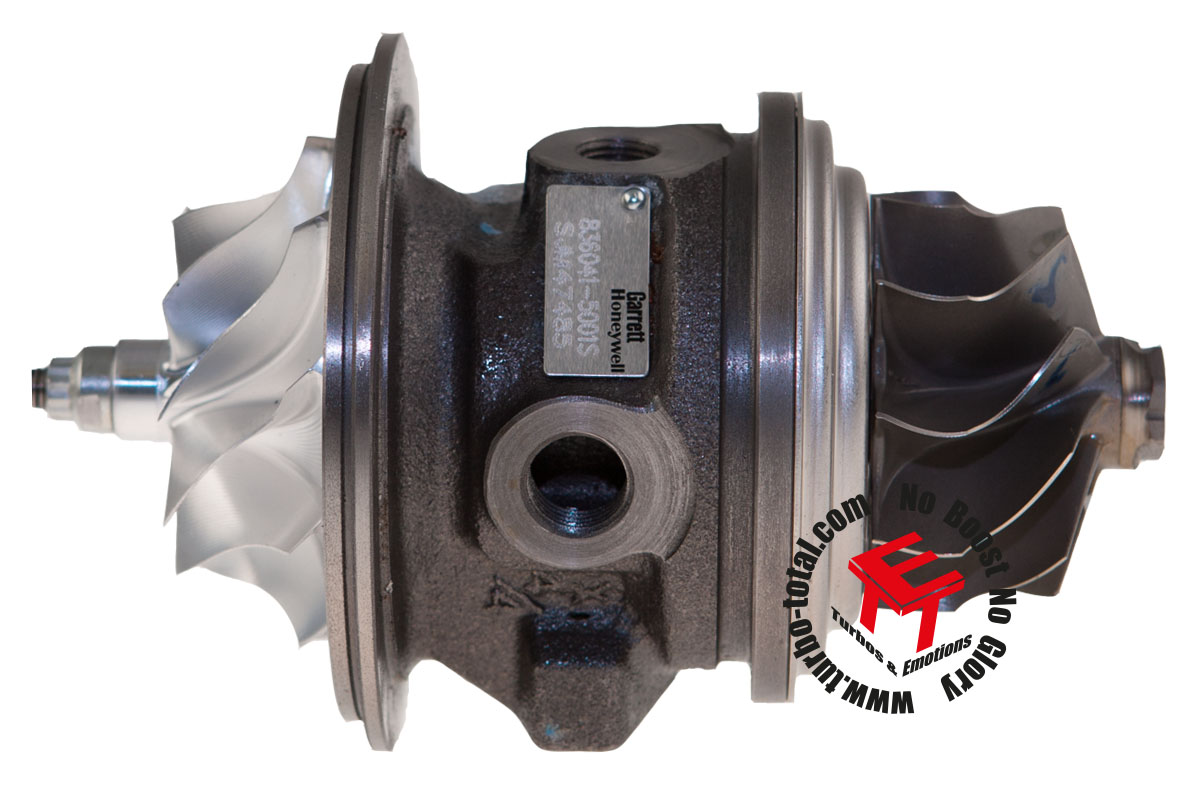

GTX2967R Garrett CHRA 836013-5001S

GARRETT
Preview: GTX2967R Garrett Rumpfgruppe 836013-5001S Preview: GTX2967R Garrett Rumpfgruppe 836013-5001S Preview: GTX2967R Garrett Rumpfgruppe 836013-5001S
GTX2967R Garrett Rumpfgruppe 836013-5001S
GTX2967R Garrett Rumpfgruppe 836013-5001S
GTX2967R Garrett Rumpfgruppe 836013-5001S

€1,355.00

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 836013-5001S
Description Evaluations 0
Description
Power rating:  275 - 500 HP Displacement:  1,8 - 3,0L Dual ceramic ball bearing assembly... more
Close menu
GTX2967R Garrett CHRA 836013-5001S

Power rating: 275 - 500 HP
Displacement: 1,8 - 3,0L

  • Dual ceramic ball bearing assembly with metal cage
  • Forged Milled Compressor Wheel
  • Inconel Turbine Wheel
  • Water- and Oil cooled
Compressor side:
Inducer ø
49,70mm		 Exducer ø
67,40mm		 Trim
55		 A/R
--
Turbine side:
Inducer ø
56,50mm		 Exducer ø
52,00mm		 Trim
84		 A/R
--
