Garrett GTW and GTW-R turbocharger

Specially designed for those tuning fans with an eye on the wallet when upgrading performance, the Garrett GTW series combines affordability with performance. The Garrett GTW-R are the ball-bearing GTW turbochargers, which you can recognize by the integrated water cooling. The GTW series (without "R") has plain bearings. Your exhaust side is compatible with various Garrett T04 exhaust housings. GTW and GTW-R Turbos are similar to the T3/T4 series. The "Super Cores" can be used as an upgrade for the T3/T4 family. Milled compressor wheels with an increased pressure ratio are used here.

Specially designed for those tuning fans with an eye on the wallet when upgrading performance, the Garrett GTW series combines affordability with performance . The Garrett GTW-R are the... read more »
Close window
Garrett GTW and GTW-R turbocharger

Specially designed for those tuning fans with an eye on the wallet when upgrading performance, the Garrett GTW series combines affordability with performance. The Garrett GTW-R are the ball-bearing GTW turbochargers, which you can recognize by the integrated water cooling. The GTW series (without "R") has plain bearings. Your exhaust side is compatible with various Garrett T04 exhaust housings. GTW and GTW-R Turbos are similar to the T3/T4 series. The "Super Cores" can be used as an upgrade for the T3/T4 family. Milled compressor wheels with an increased pressure ratio are used here.

Close filters

  •
from to
  •
  •
  •
  •
  •
  •
  •
No results were found for the filter!
Hint!

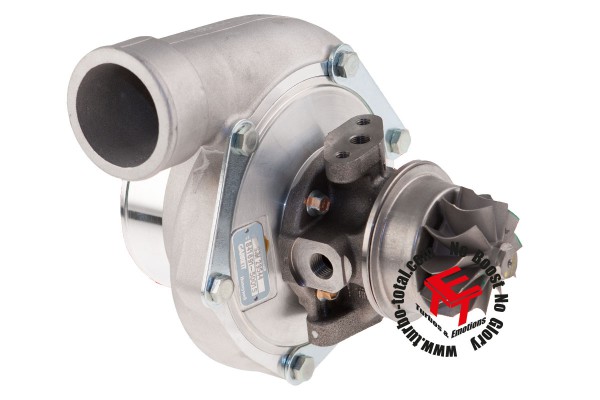

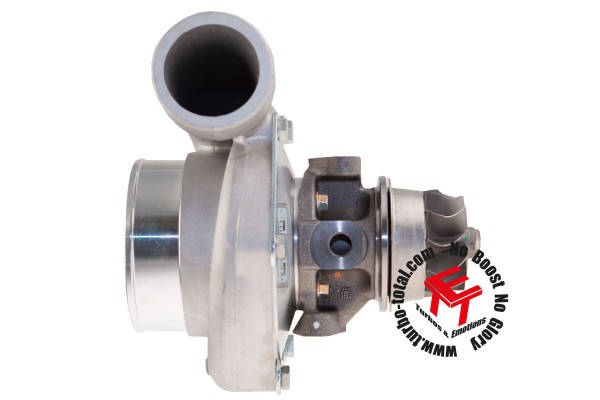

GTW3476R Garrett Turbocharger 841691-5001S 841691-1 GTW3476R Garrett Turbocharger 841691-5001S 841691-1 GTW3476R Garrett Turbocharger 841691-5001S 841691-1 GTW3476R Garrett Turbocharger 841691-5001S 841691-1
Quick view
GTW3476R Garrett Turbocharger 841691-5001S...
Horsepower: 350 - 700 HP Displacement: 2.0 - 4.5 L Dual ceramic ball bearing cartridge Latest CFD-optimized, forged milled compressor wheel High-Flow compressor housing Inconel turbine wheel Water- and Oil cooled Compressor side: Inducer...
€1,193.00
Hint!

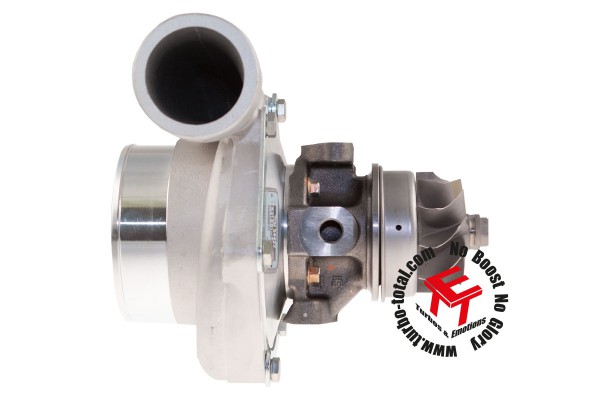

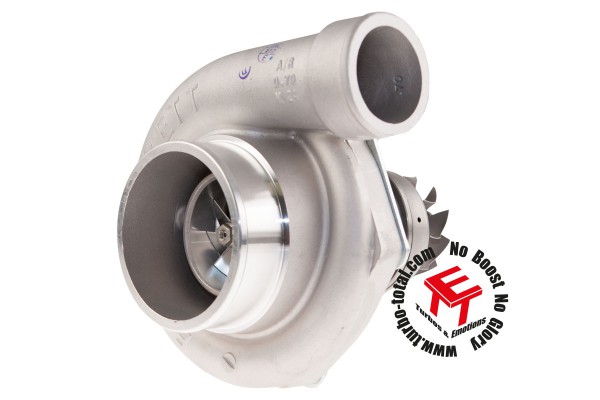

GTW3684R Garrett Turbocharger 841691-5002S 841691-2 GTW3684R Garrett Turbocharger 841691-5002S 841691-2 GTW3684R Garrett Turbocharger 841691-5002S 841691-2 GTW3684R Garrett Turbocharger 841691-5002S 841691-2
Quick view
GTW3684R Garrett Turbocharger 841691-5002S...
Horsepower: 425 - 750 HP Displacement: 2.0 - 5.3 L Dual ceramic ball bearing cartridge Latest CFD-optimized, forged milled compressor wheel High-Flow compressor housing Inconel turbine wheel Water- and Oil cooled Compressor side: Inducer...
€1,256.00
Hint!

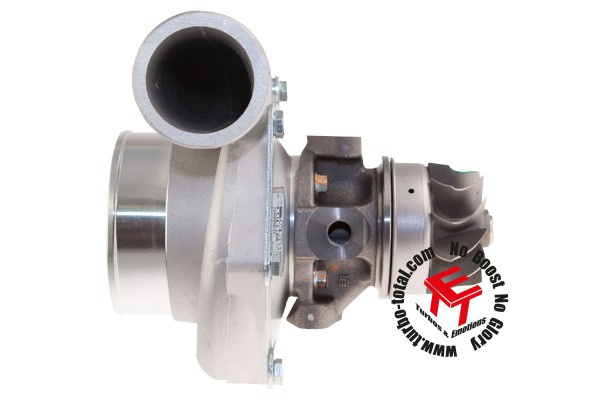

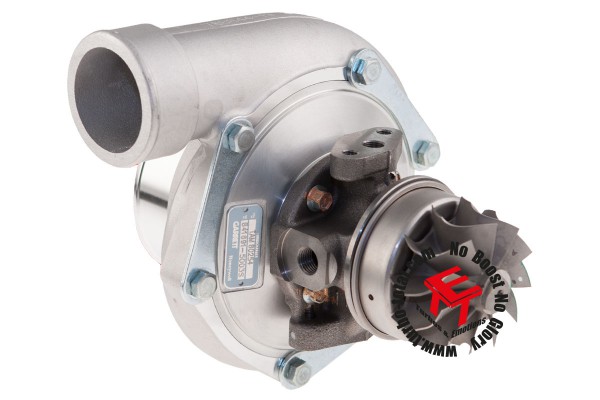

GTW3884R Garrett Turbocharger 841691-5003S 841691-3 GTW3884R Garrett Turbocharger 841691-5003S 841691-3 GTW3884R Garrett Turbocharger 841691-5003S 841691-3 GTW3884R Garrett Turbocharger 841691-5003S 841691-3
Quick view
GTW3884R Garrett Turbocharger 841691-5003S...
Horsepower: 450 - 800 HP Displacement: 2.0 - 6.0 L Dual ceramic ball bearing cartridge Latest CFD-optimized, forged milled compressor wheel High-Flow compressor housing Inconel turbine wheel Water- and Oil cooled Compressor side: Inducer...
€1,289.00
Hint!

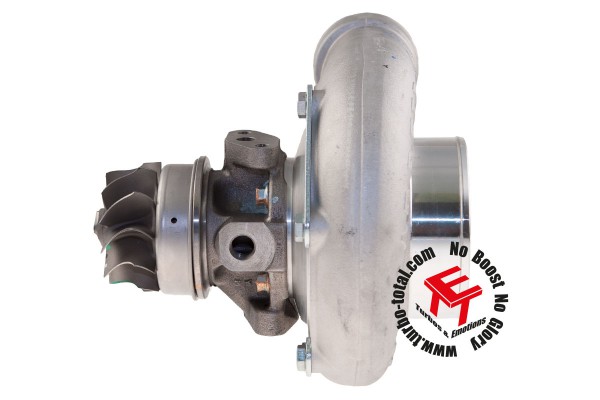

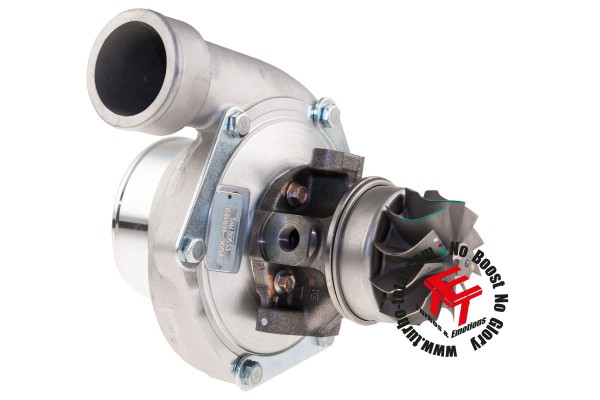

GTW3884R Garrett Turbocharger 841691-5004S 841691-4 GTW3884R Garrett Turbocharger 841691-5004S 841691-4 GTW3884R Garrett Turbocharger 841691-5004S 841691-4 GTW3884R Garrett Turbocharger 841691-5004S 841691-4
Quick view
GTW3884R Garrett Turbocharger 841691-5004S...
Horsepower: 475 - 900 HP Displacement: 2.0 - 6.0 L Dual ceramic ball bearing cartridge Latest CFD-optimized, forged milled compressor wheel High-Flow compressor housing Inconel turbine wheel Water- and Oil cooled Compressor side: Inducer...
€1,289.00
Hint!

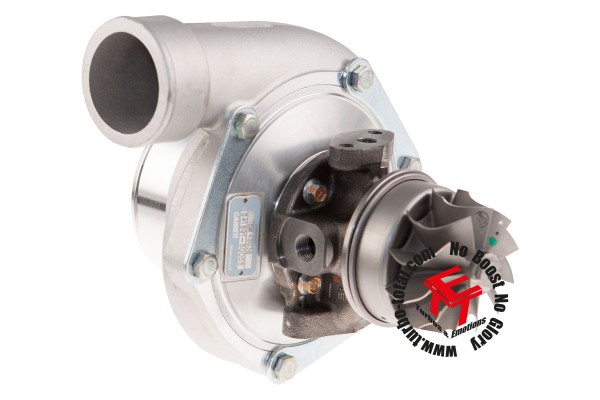

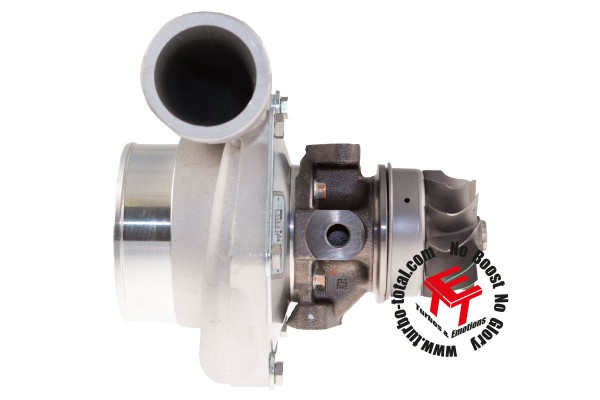

GTW3884R Garrett Turbocharger 841691-5005S 841691-5 GTW3884R Garrett Turbocharger 841691-5005S 841691-5 GTW3884R Garrett Turbocharger 841691-5005S 841691-5 GTW3884R Garrett Turbocharger 841691-5005S 841691-5
Quick view
GTW3884R Garrett Turbocharger 841691-5005S...
Horsepower: 500 - 950 HP Displacement: 3.0 - 6.0 L Dual ceramic ball bearing cartridge Latest CFD-optimized, forged milled compressor wheel High-Flow compressor housing Inconel turbine wheel Water- and Oil cooled Compressor side: Inducer...
€1,405.00

Garrett GTW Series: Powerful and affordable

Price-conscious tuning enthusiasts will get their money's worth with the GTW series turbos. With them, Garrett has brought turbochargers onto the market that are powerful and have optimal boost pressure behavior. The "W" in the name, which stands for wider flow range, already indicates that great importance is attached to high throughput and perfect response.

These turbos already have the milled, forged compressor wheel with eleven blades and the perfectly matched high-flow compressor housing, which is provided with openings. This gives it high shock resistance and continuous power across the entire power range. The GTW turbine wheel is made of the extremely heat-resistant Inconel material, which makes the turbos tough and durable.

What you should know about the GTW turbochargers

If you are thinking about an exchange, you should know the following points:

  • GTW bearing housings are larger than those on the GT-R and GTX turbochargers, so you cannot use them on the GTW.
  • The oil lines (both supply and return) of the plain bearing GTW series are different from those of the GT-R and GTX series.
  • The oil drain plugs of the ball bearing GTW turbochargers are not the same as those of the GTX and GT-R turbos.

Turbos for individualists

If you are planning an individual project and none of the turbos in our shop are right for you, just contact us. We have a wide variety of components in stock and can certainly put together the right turbo for you. This is because we are the only Garrett Performance distributor in Germany and have a direct line to Garrett. We look forward to your project!
