GTX3071R Garrett Turbocharger 836042-5002S

GARRETT
Preview: GTX3071R Garrett Turbocharger 836042-5002S Preview: GTX3071R Garrett Turbocharger 836042-5002S Preview: GTX3071R Garrett Turbocharger 836042-5002S Preview: GTX3071R Garrett Turbocharger 836042-5002S

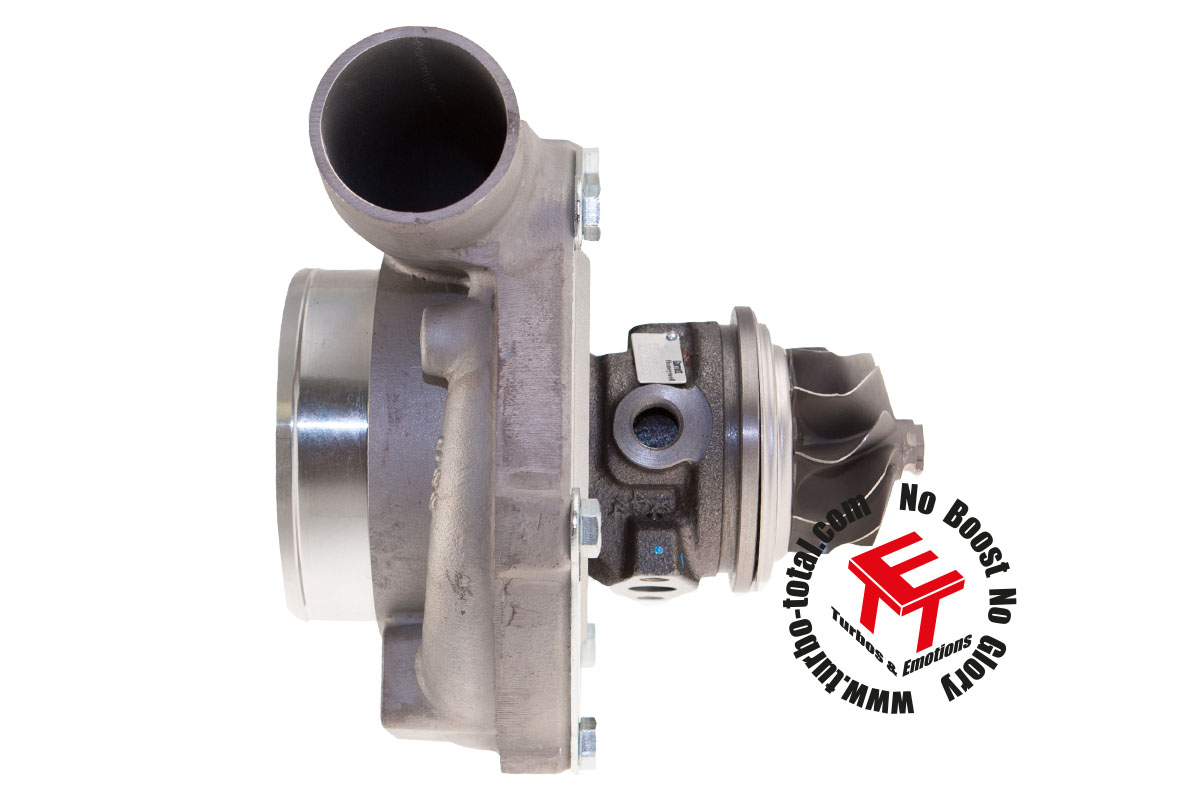

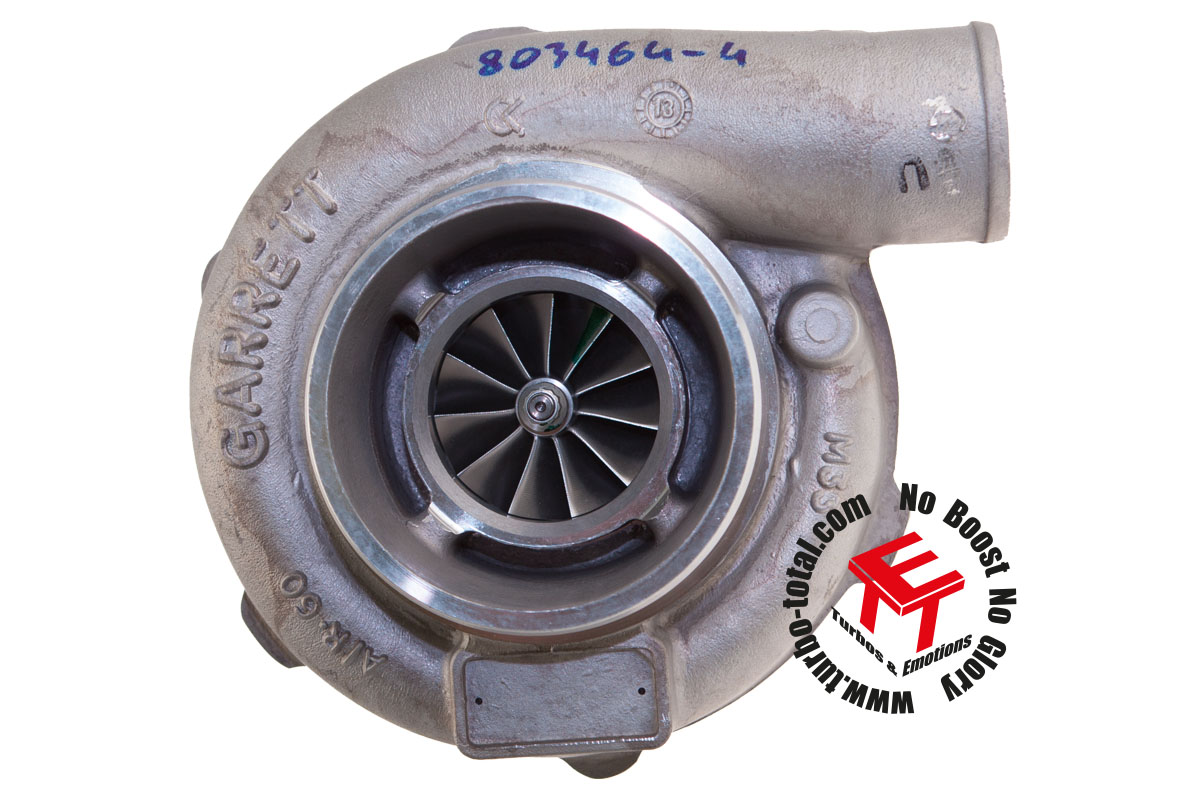

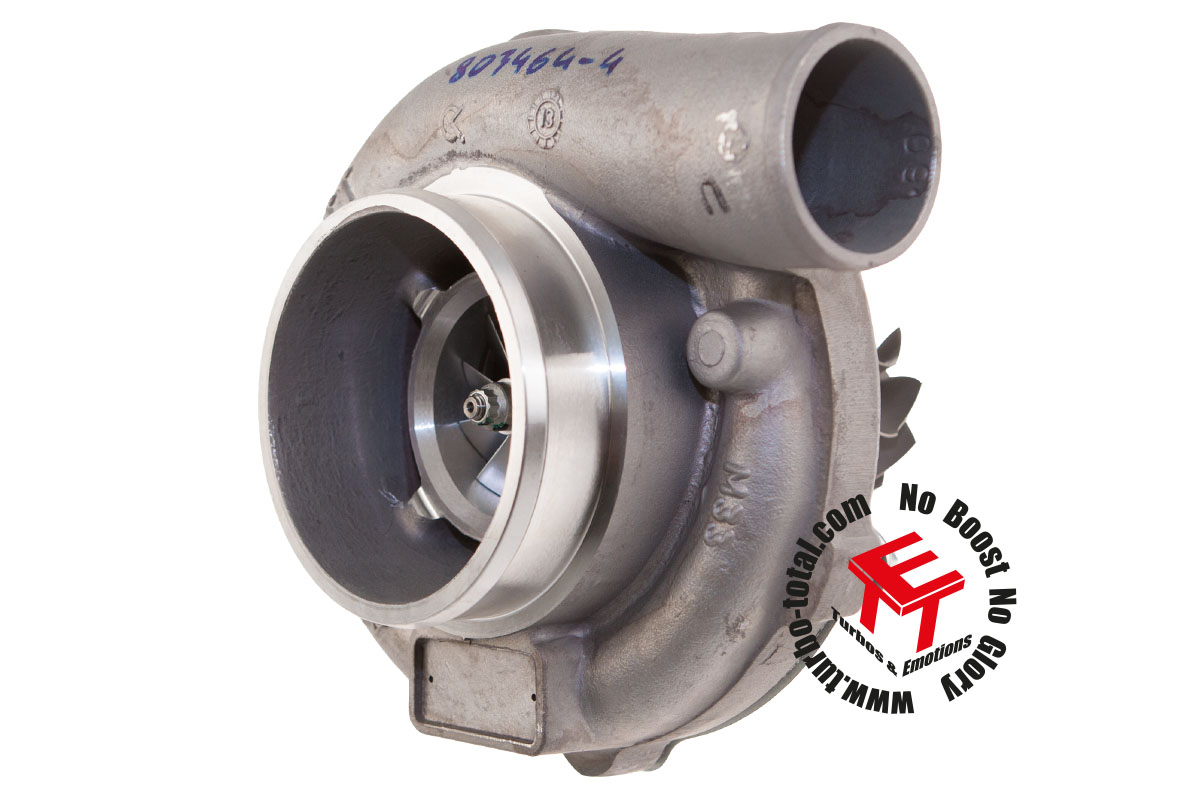

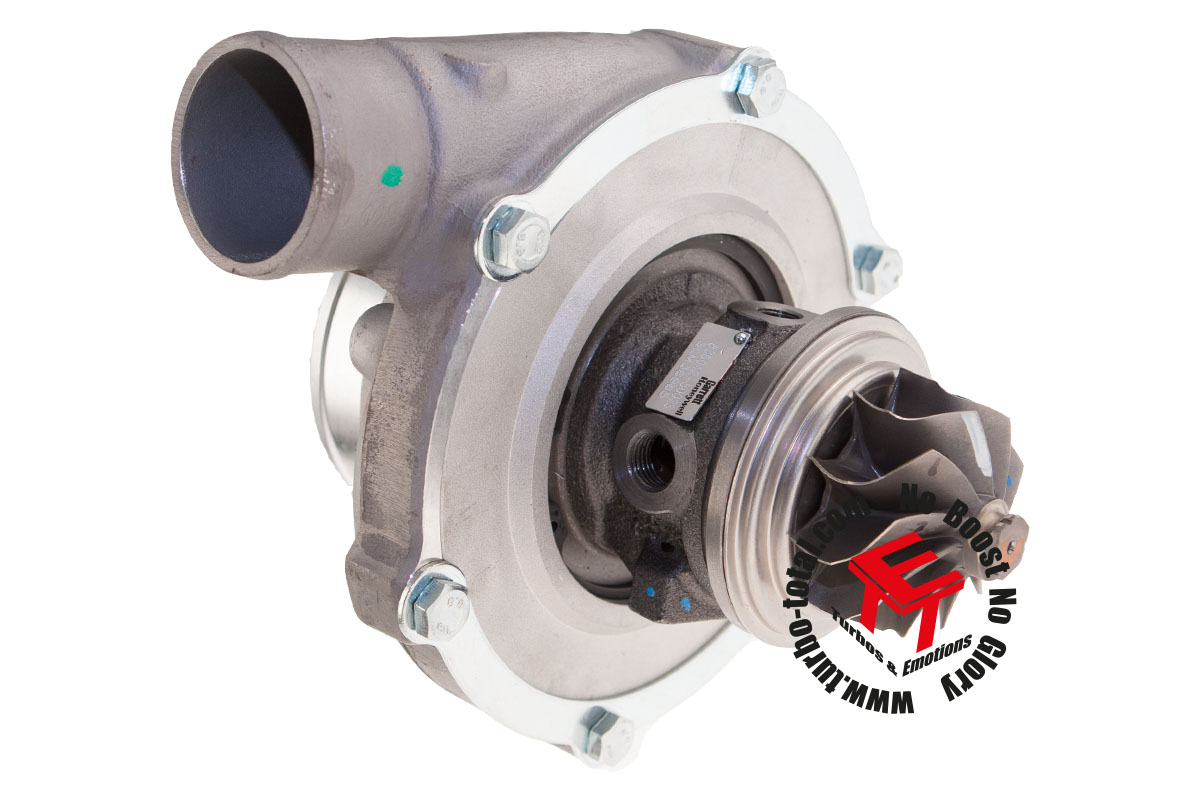

GTX3071R Garrett Turbocharger 836042-5002S
GTX3071R Garrett Turbocharger 836042-5002S
GTX3071R Garrett Turbocharger 836042-5002S
GTX3071R Garrett Turbocharger 836042-5002S

There is a successor for this article:
Garrett GTX3071R Gen II Super Core 851154-5002S

€1,309.00*

incl. VAT plus shippingcosts
Articlenumber: 851154-5002S
go to article
Description Drawings Maps Evaluations 0
Description
Horsepower: 340 - 560 HP Displacement: 1.8 - 3.0L Original GTX Comp Wheel Aerodynamics... more
Close menu
GTX3071R Garrett Turbocharger 836042-5002S

Horsepower: 340 - 560 HP
Displacement: 1.8 - 3.0L

  • Original GTX Comp Wheel Aerodynamics
  • High-Flow Compressor Housing
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
  • Super Core and Turbine Housing sold separately
  • Old Number: 803712-5001S
Compressor side:
Inducer ø
54.10mm		 Exducer ø
71.40mm		 Trim
58		 A/R
0.60
Turbine side:
Inducer ø
60.00mm		 Exducer ø
55.00mm		 Trim
84		 A/R
--
Available downloads:
Drawings
Zeichnung als PDF öffnen more
Zurück

Zeichnung als PDF öffnen

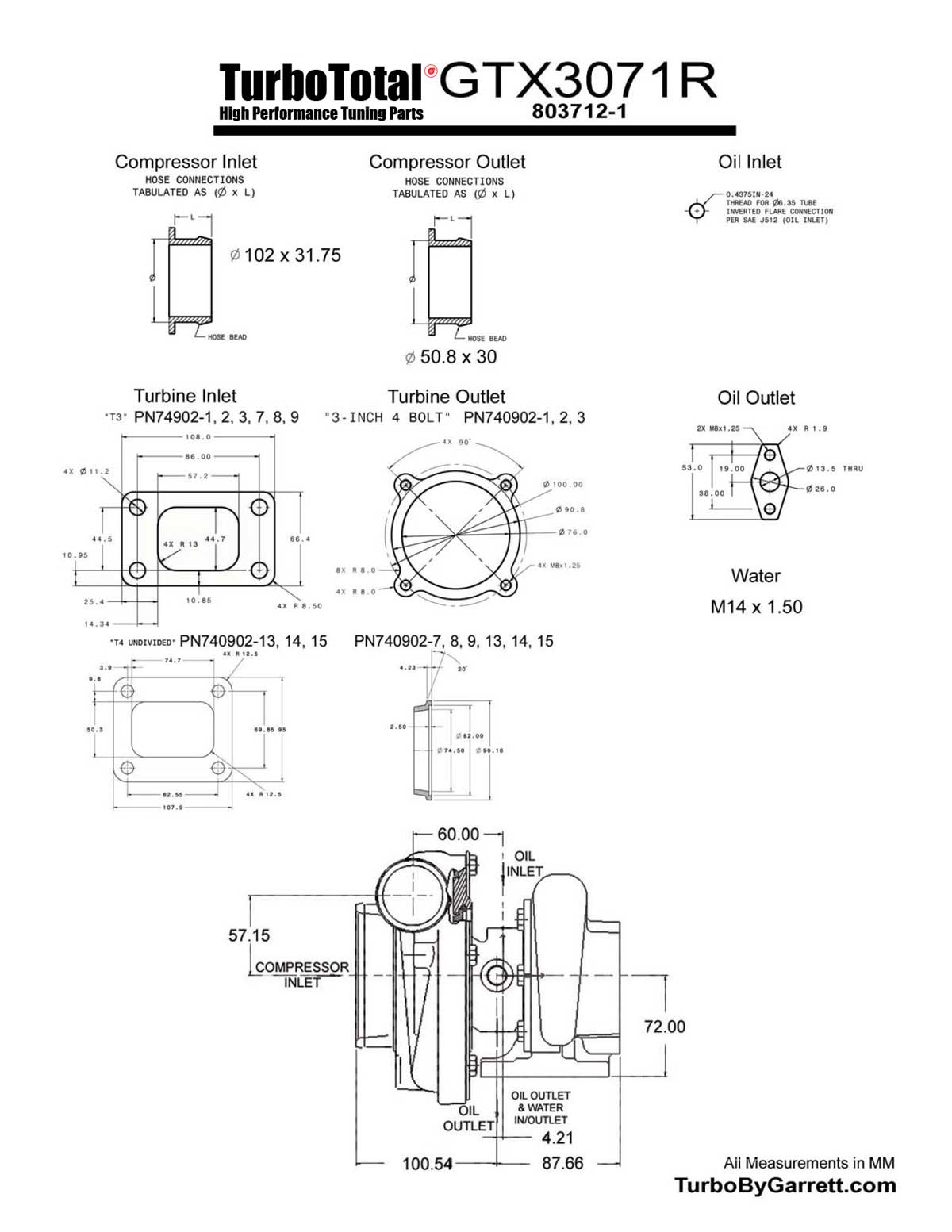

Garrett_GTX3071R_-_803712-1_flange

Maps
more
Zurück

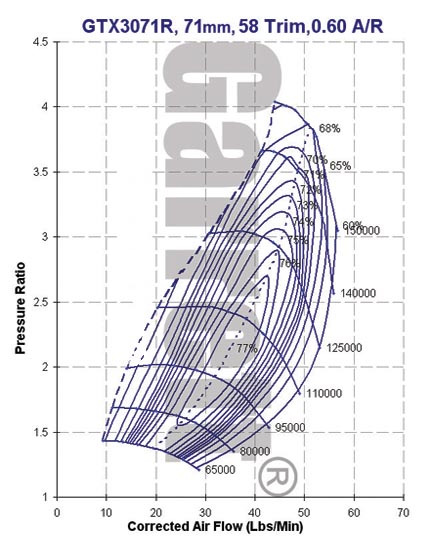

GTX3071RVKGTX3071RTK
