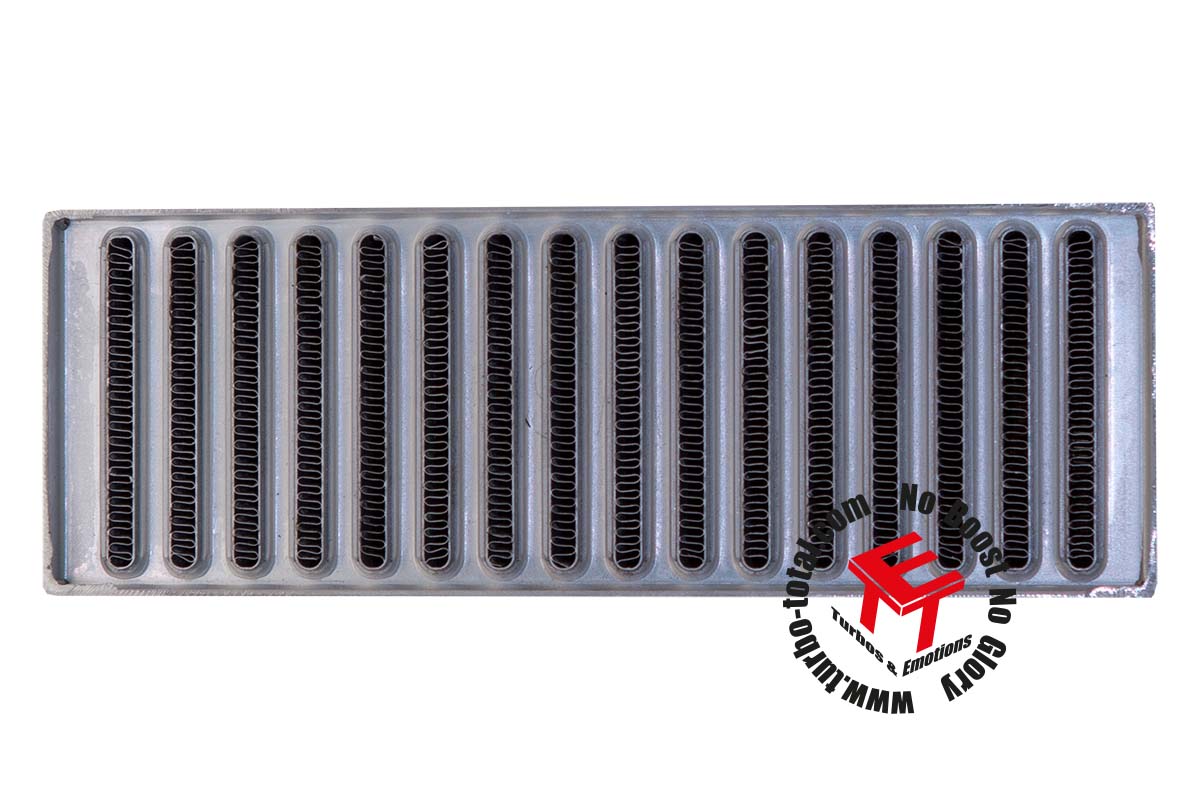

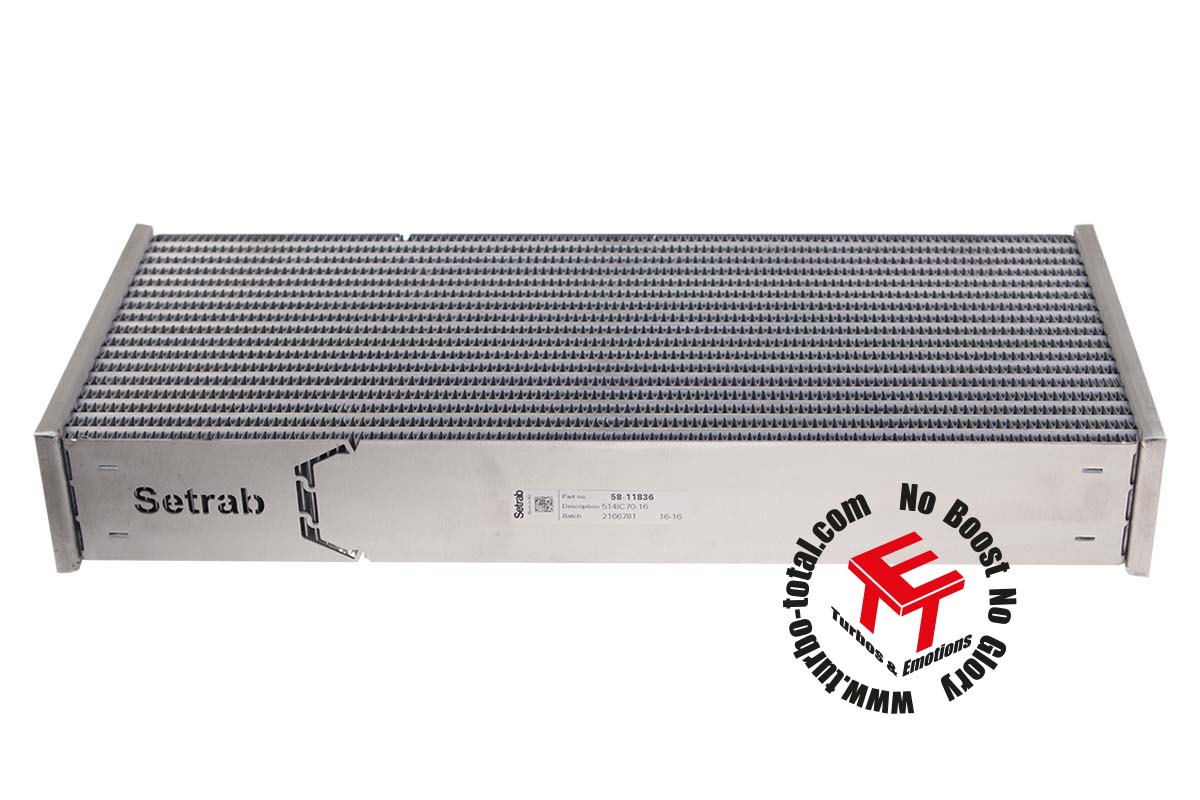

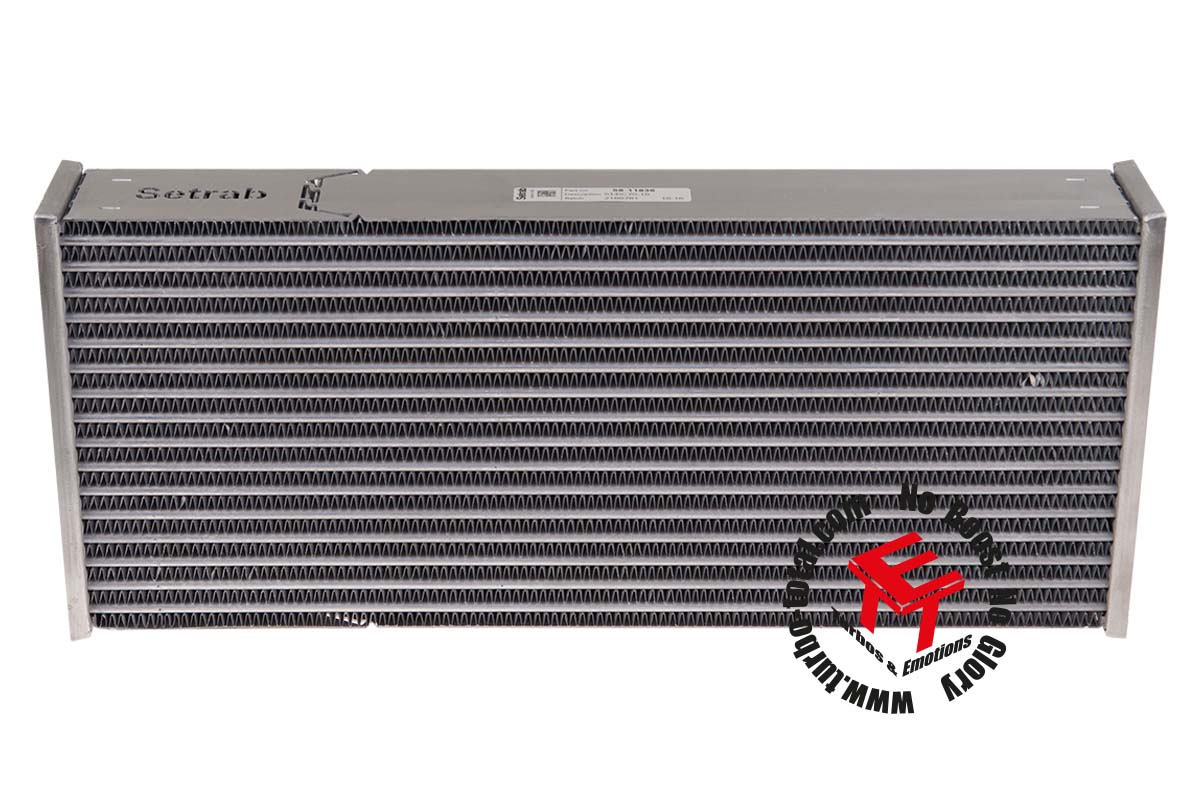

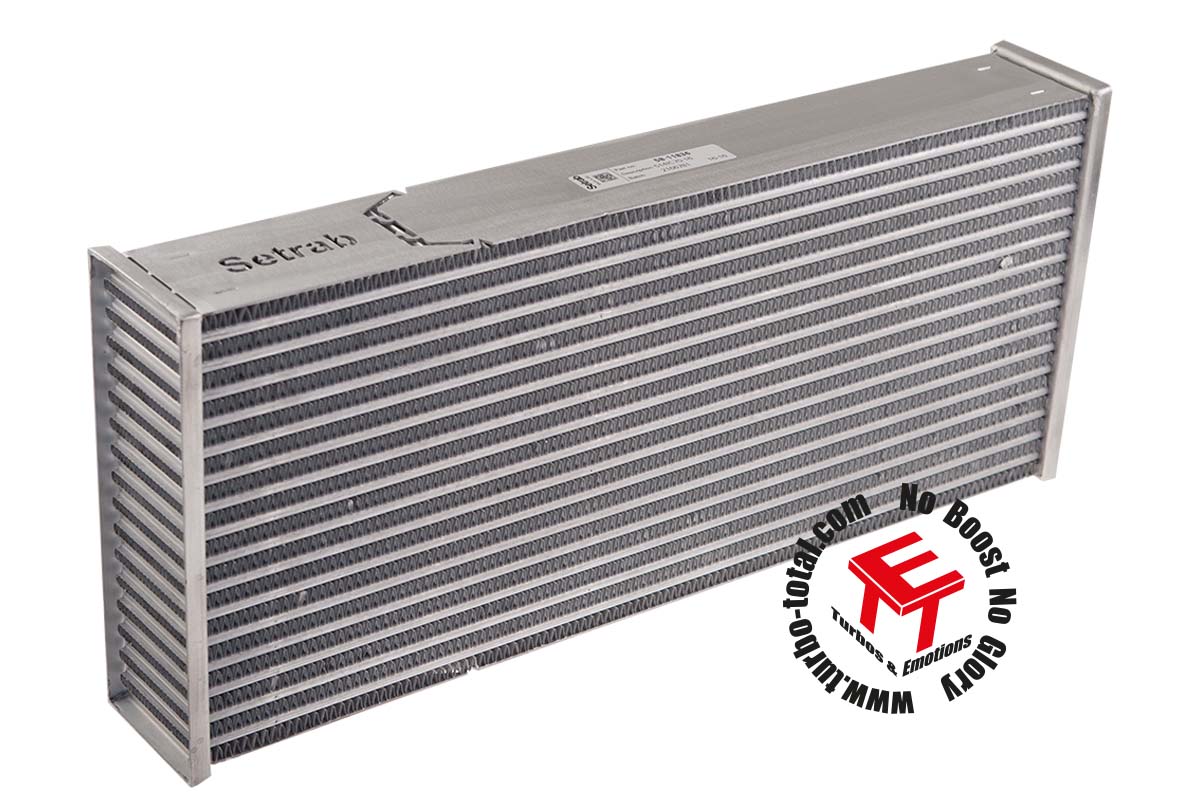

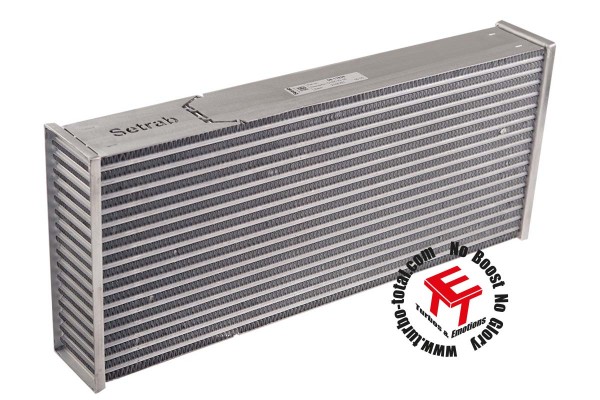

Setrab ProLine IC 514IC-16 Intercooler Core

This product is currently not available.
€509.00

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 58-11836
L  514mm x H 223mm x T 70mm Extremely low weight, only 3.0 KG Maximum heat... more
Setrab ProLine IC 514IC-16 Intercooler Core

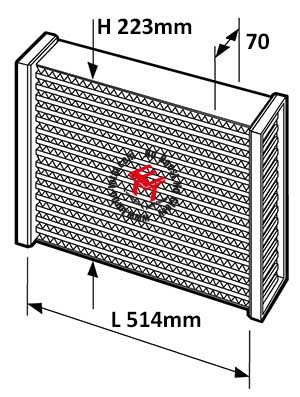

514mm x H 223mm x T 70mm

  • Extremely low weight, only 3.0 KG
  • Maximum heat dissipation with low pressure loss
  • 100% tested for leakage
  • Extremely resistant to corrosion
  • Superior finishing quality

514IC-16

Technical Specifications

Working Pressure

0-2.5 bar(g) dynamic

Pressure Pulsation Endurance

100k pulsations, 0-3 bar(g), 0.5-1 Hz, 200 °C air temp

Max Pressure

4 bar(g)

Burst Pressure

6 bar(g)

Leak Test

1.5 bar(g) (Core)

Working Temperature

-40 °C to 220 °C

Corrosion Endurance

20 Days SWAAT G85-94 A3 960h ISO 9227 NSS

Inner Cleanliness

ISO 16232:10, CCC=V(B-K21/C-K18/F-K12/I-K3/J-K00), <10 mg impurities total

General Dimensional Tolerances

ISO 2768-v

Material

Aluminium alloys
