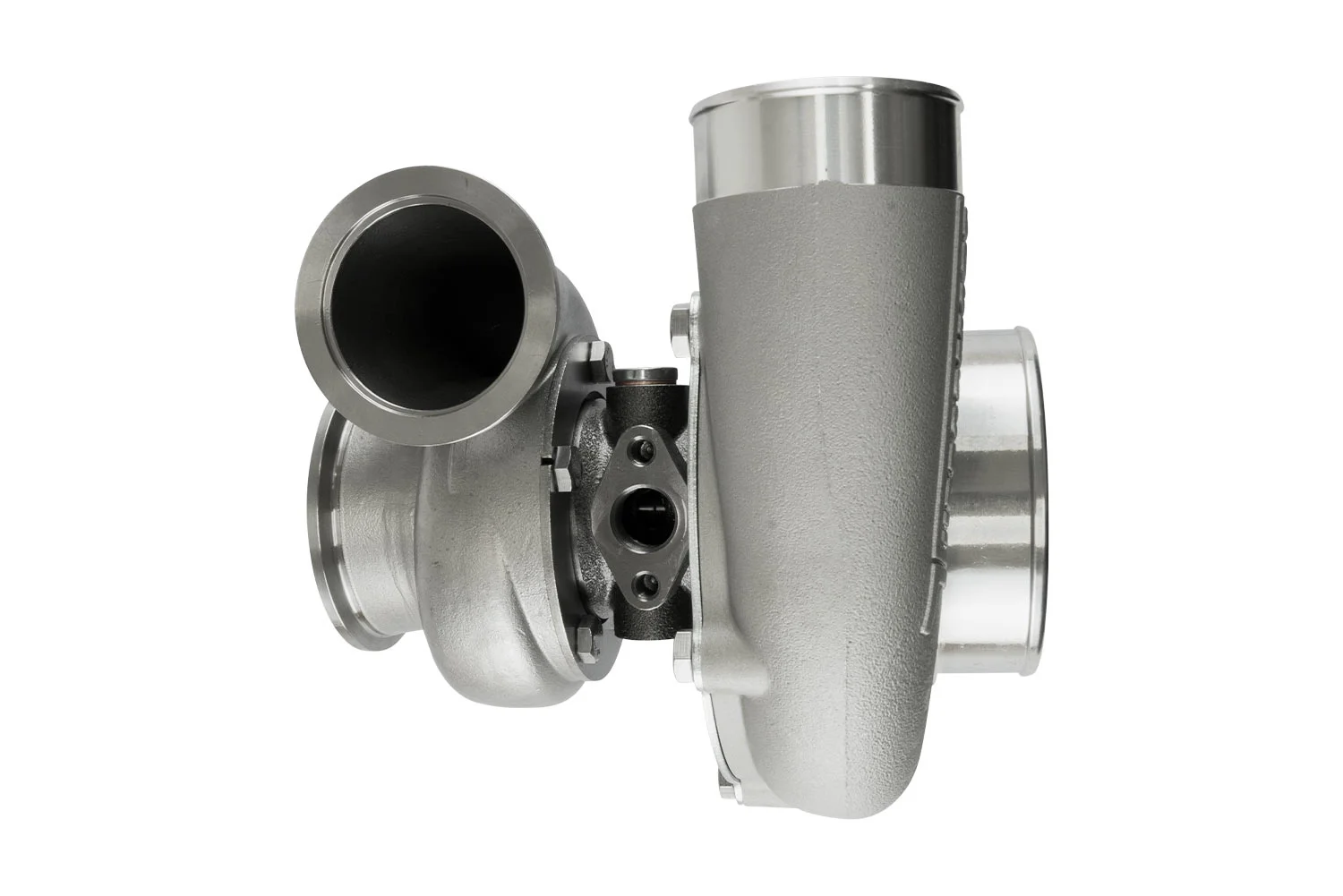

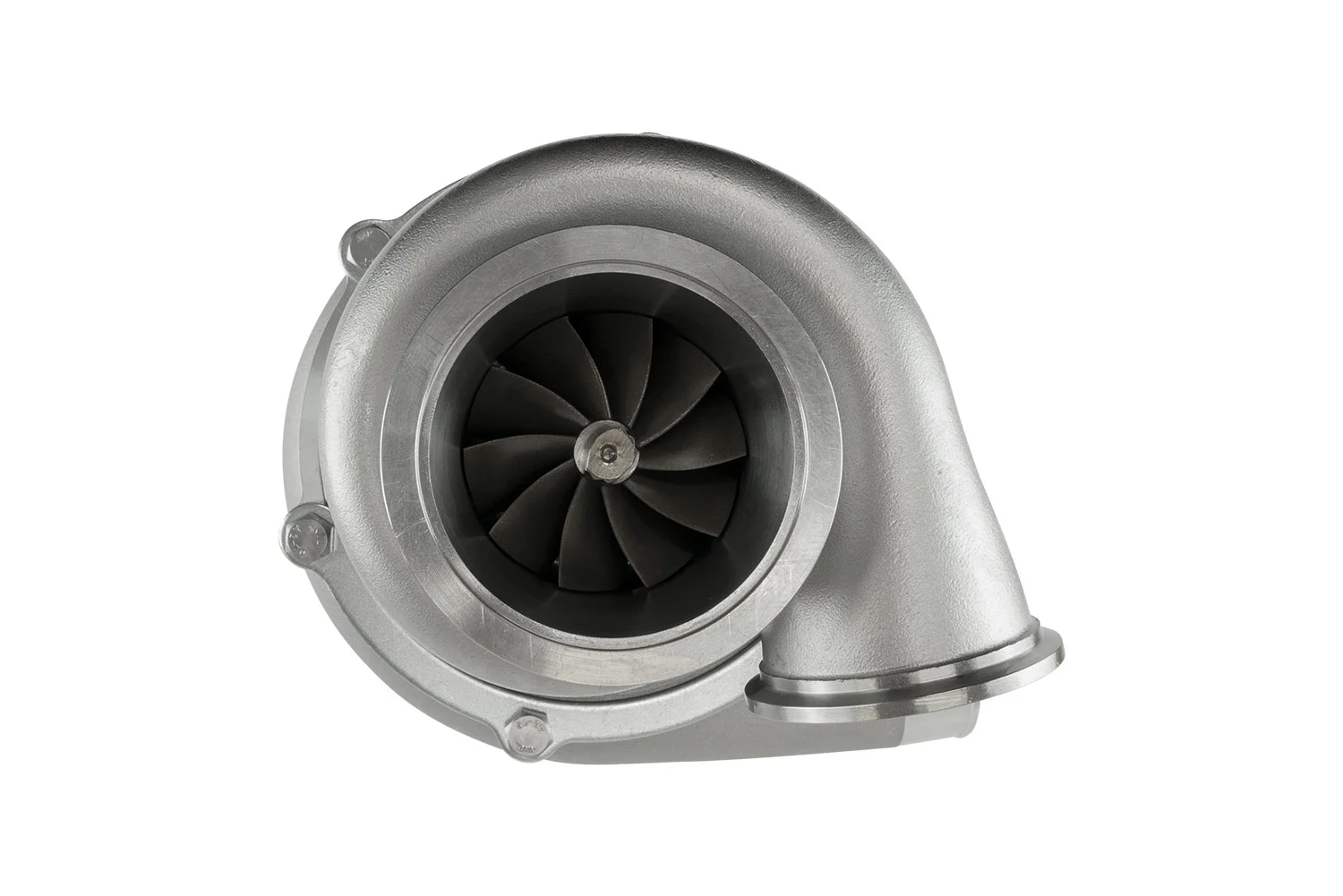

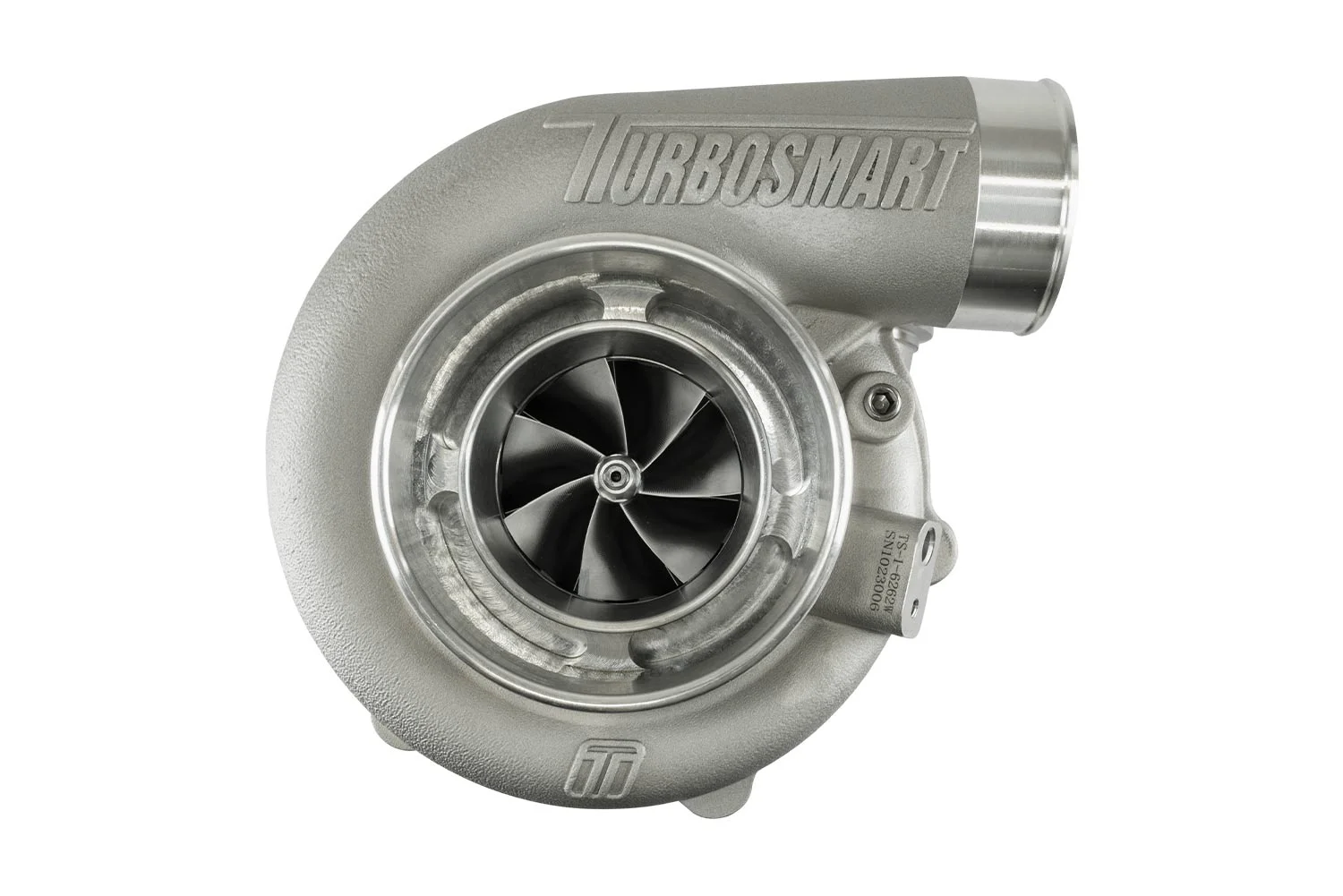

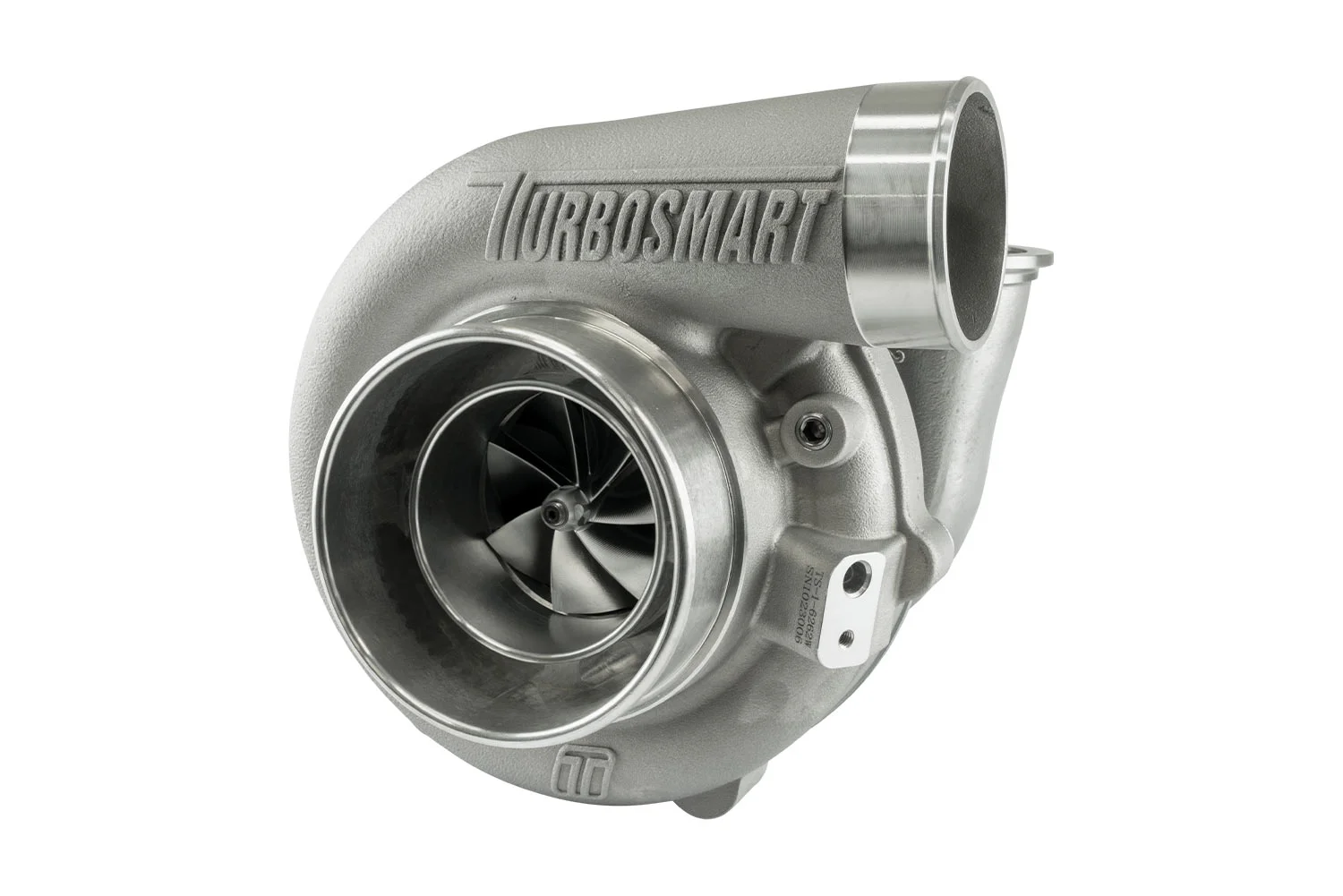

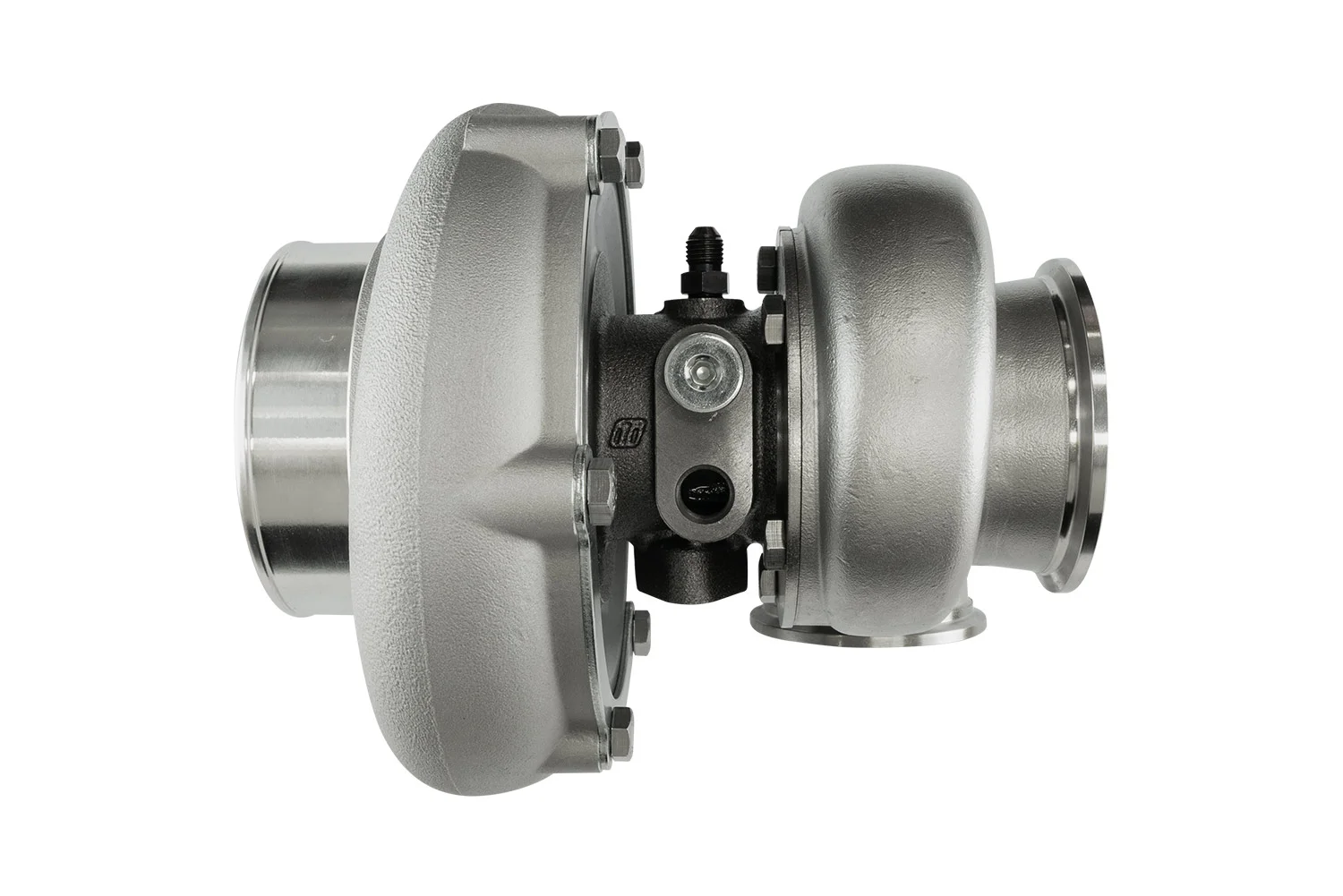

Turbosmart turbocharger 6466 V-Band/V-Band

"Smaller, lighter and faster"

Power rating: 825 - 955 hp

V-band input - V-band output - single scroll - 0.82 A/R - external boost pressure control (water-cooled)

The Turbosmart TS-2 turbocharger series has been developed to create a new model range utilising modern materials and the latest design and manufacturing technology to meet the needs of both motorsport and enthusiast enthusiasts .

The TS-2 series are water and oil cooled turbocharger with lightweight turbine housings made from investment cast stainless steel.

Our unique ball bearing and rotor shaft combination concept enables unrivalled low speed response.

The TS-2 turbocharger fulfil all Turbosmart features for which we are known: Quality, reliability and performance.

Our unique ball bearings and Inconel turbine wheel are matched to the aggressive aerodynamics of the compressor to ensure a high level of performance at low rpm.

The TS-2 turbocharger series takes a "holistic" approach to power enhancement with the goal of achieving power through reduced exhaust backpressure and a high performance turbine wheel - while being smaller, lighter and faster in response than other solutions on the market.

Variants:

• TS-1- turbocharger oil-cooled
• TS-2 oil- and water-cooled turbocharger
• V-band, various T3 flange and T4 flange options
• Direction of rotation: Reverse Left (selected sizes)
• Various A/R options
• Internal and external boost pressure control options available

Features:

• unrivalled low speed response
• Aggressive aerodynamics with 7+7 vanes compressor wheel
• Lightweight turbine housing made from 310 stainless steel investment casting
• Lightweight aluminium compressor housing
• CFD-developed compressor housing for optimised throughput and flow
• 713C Inconel turbine wheel for extreme exhaust temperatures
• VSR high-speed fine balancing
• Dual ceramic bearing developed by Turbosmart
• Integrated stainless steel compressor back plate on centre housing
• Water cooled

Compressor specification:

• Compressor inlet: 4″ / 101.6 mm
• Inducer compressor wheel: 64 mm
• Turbine inlet: V-band (2.25")
• Direction of rotation: Standard
• Exducer turbine wheel: 66 mm
• Turbine housing: 0.82 A/R
• Turbine outlet: V-band (3″ - 76 mm)
• Weight: 6 kg

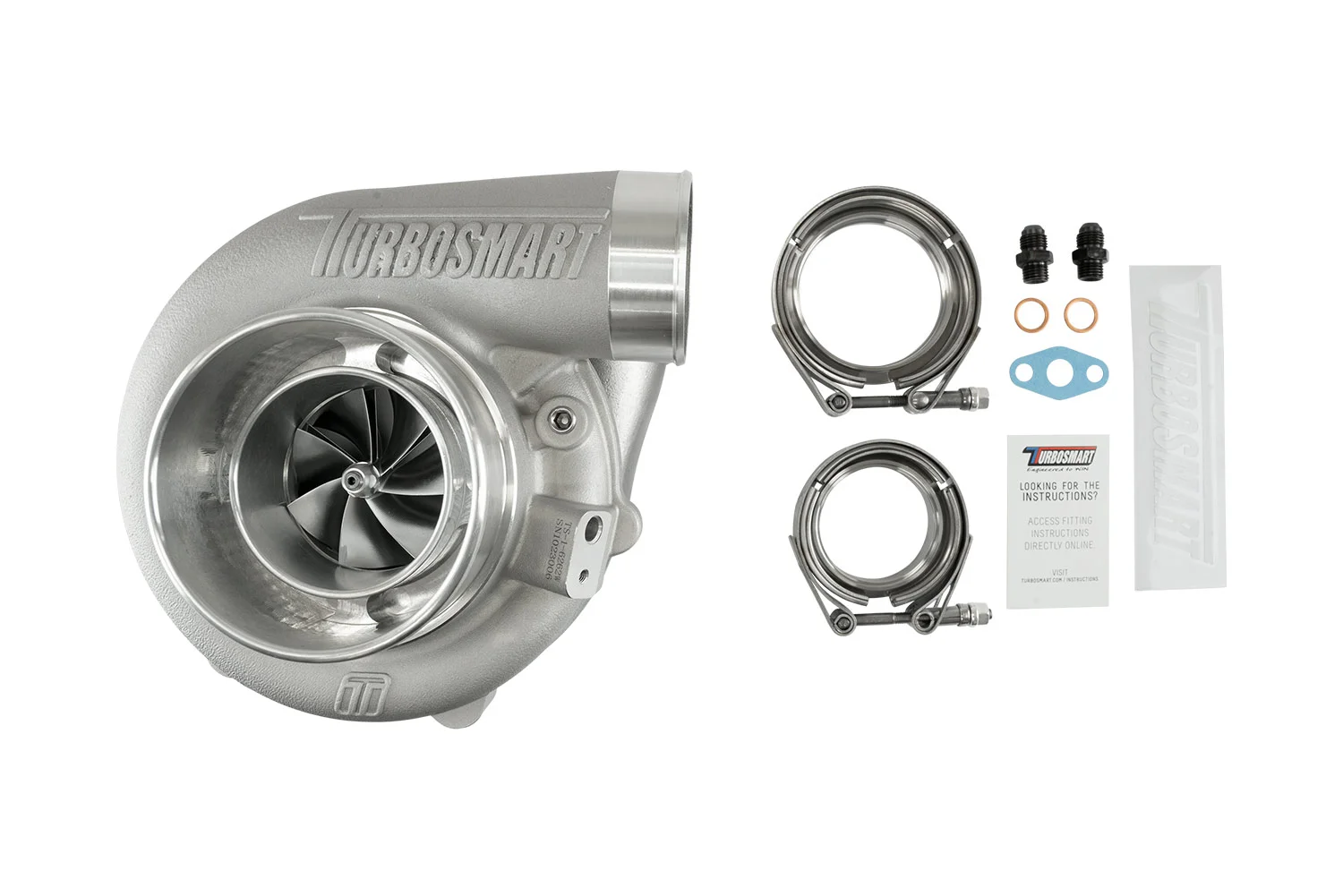

Scope of delivery:

• 1 x Turbosmart Performance turbocharger
• 2 x weld-on flange (turbine inlet and outlet)
• 2 x V-band clamp (turbine inlet and outlet)
• 1 x oil return gasket
• 1 x oil restrictor
