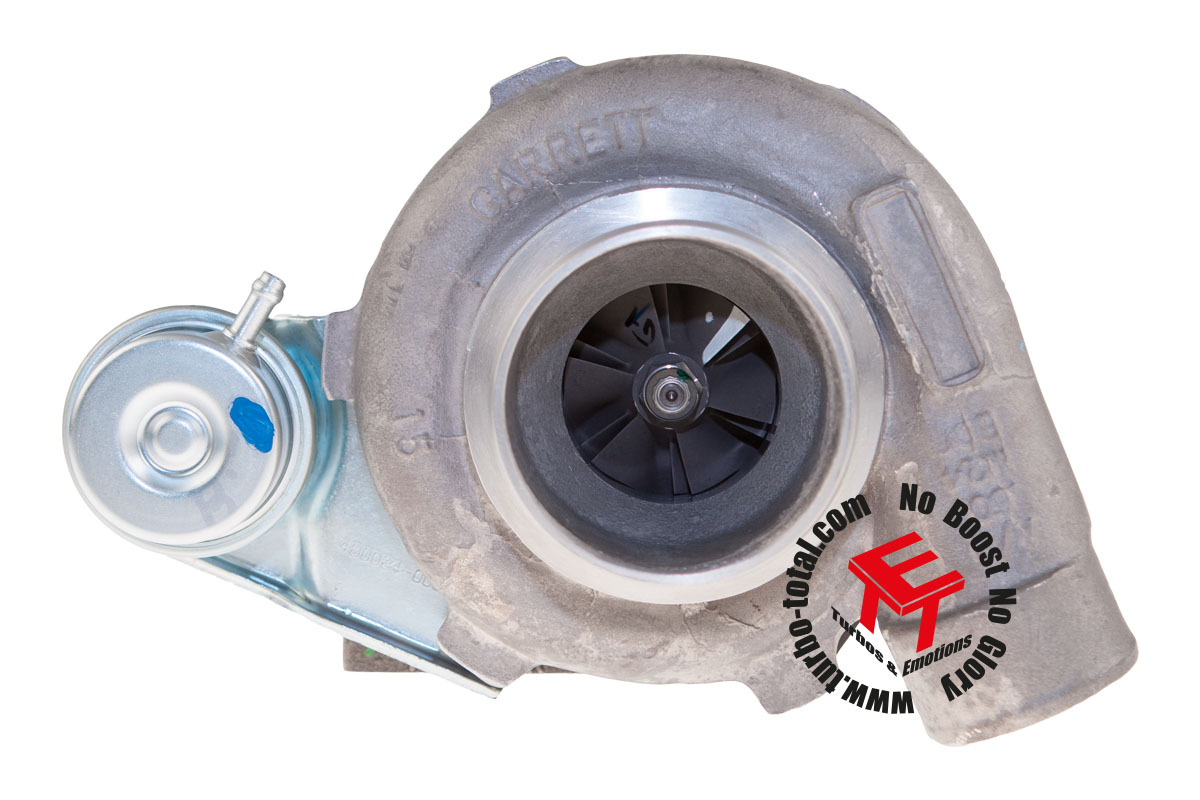

GT2871R Garrett Turbocharger High Boost 0.86 A/R 836026-5020S / 743347-2

GARRETT
Preview: GT2871R Garrett Turbolader High Boost 0.86 A/R 836026-5020S / 743347-2 Preview: GT2871R Garrett Turbolader High Boost 0.86 A/R 836026-5020S / 743347-2 Preview: GT2871R Garrett Turbolader High Boost 0.86 A/R 836026-5020S / 743347-2 Preview: GT2871R Garrett Turbolader High Boost 0.86 A/R 836026-5020S / 743347-2
GT2871R Garrett Turbolader High Boost 0.86 A/R 836026-5020S / 743347-2
GT2871R Garrett Turbolader High Boost 0.86 A/R 836026-5020S / 743347-2
GT2871R Garrett Turbolader High Boost 0.86 A/R 836026-5020S / 743347-2
GT2871R Garrett Turbolader High Boost 0.86 A/R 836026-5020S / 743347-2

€1,033.60

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 705330-5002S
Description Drawings Maps Evaluations 0
Description
Horsepower:  280 - 475 hp Displacement:  1,8 - 3,0L High Boost Steuerdose, Einstellbar bis... more
Close menu
GT2871R Garrett Turbocharger High Boost 0.86 A/R 836026-5020S / 743347-2

Horsepower: 280 - 475 hp
Displacement: 1,8 - 3,0L

  • High Boost Steuerdose, Einstellbar bis 0.82 bar Ladedruck
  • Dual ceramic ball bearing cartridges
  • Cast compressor wheel
  • Inconel turbine wheel
  • Water- and oil cooled
  • Old number: 743347-5002S
Compressor side:
Inducer ø
53,10mm		 Exducer ø
71,00mm		 Trim
56		 A/R
0,60
Turbine side:
Inducer ø
53,90mm		 Exducer ø
47,00mm		 Trim
76		 A/R
0,86
Available downloads:
Drawings
Zeichnung als PDF öffnen more
Zurück

Zeichnung als PDF öffnen

Garrett_GT2871R_743347_2_Zeichnung

Maps
more
Zurück

743347-1-2comp743347-1-2turb
