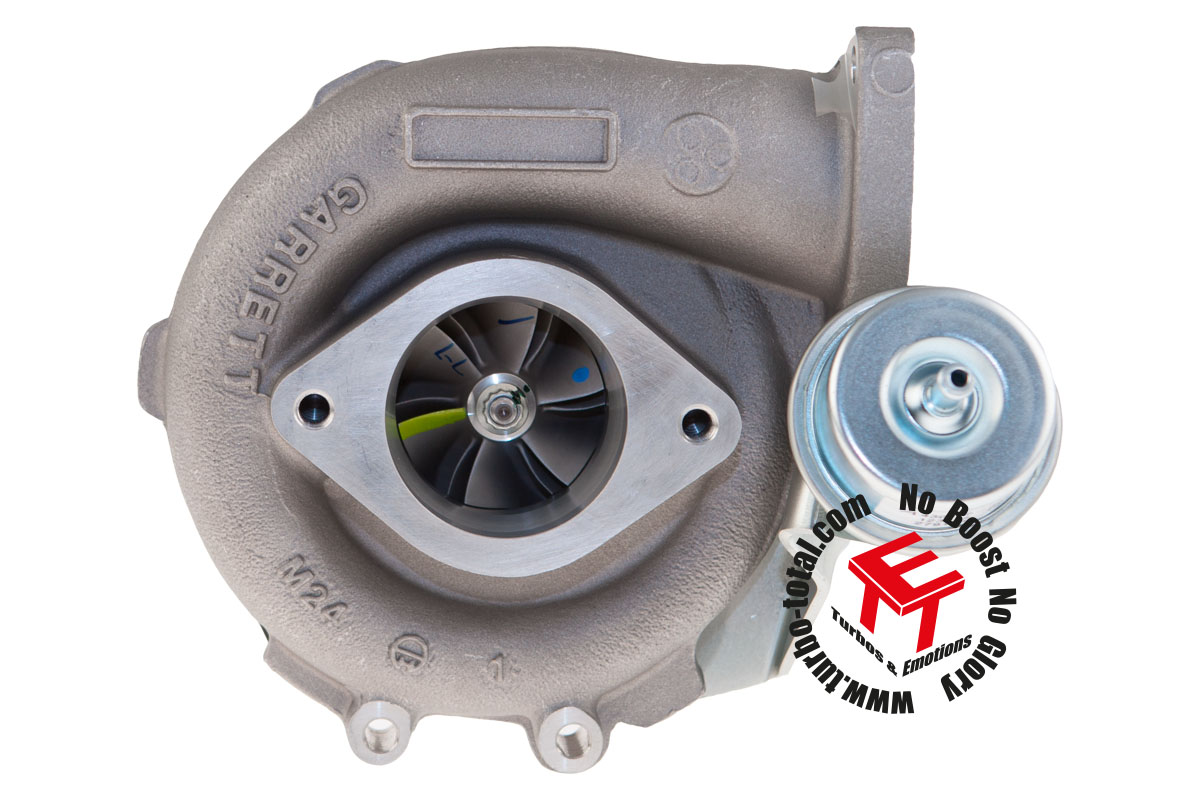

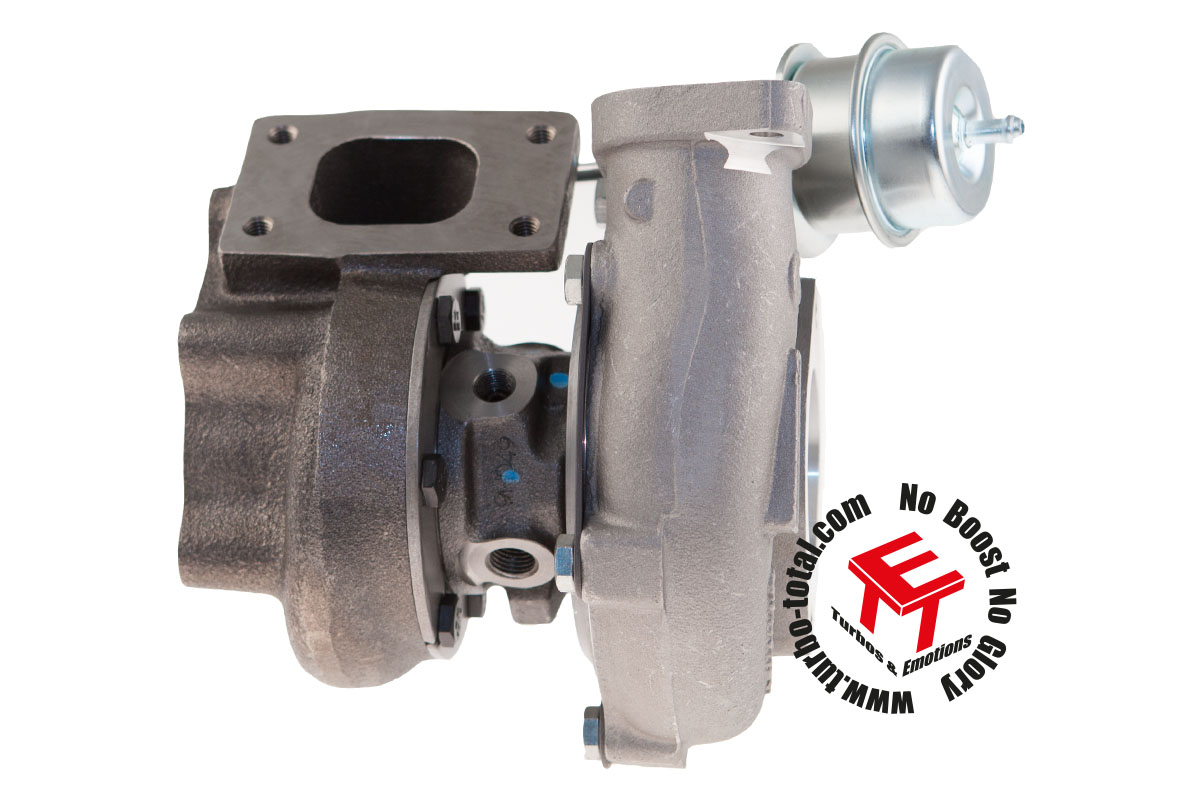

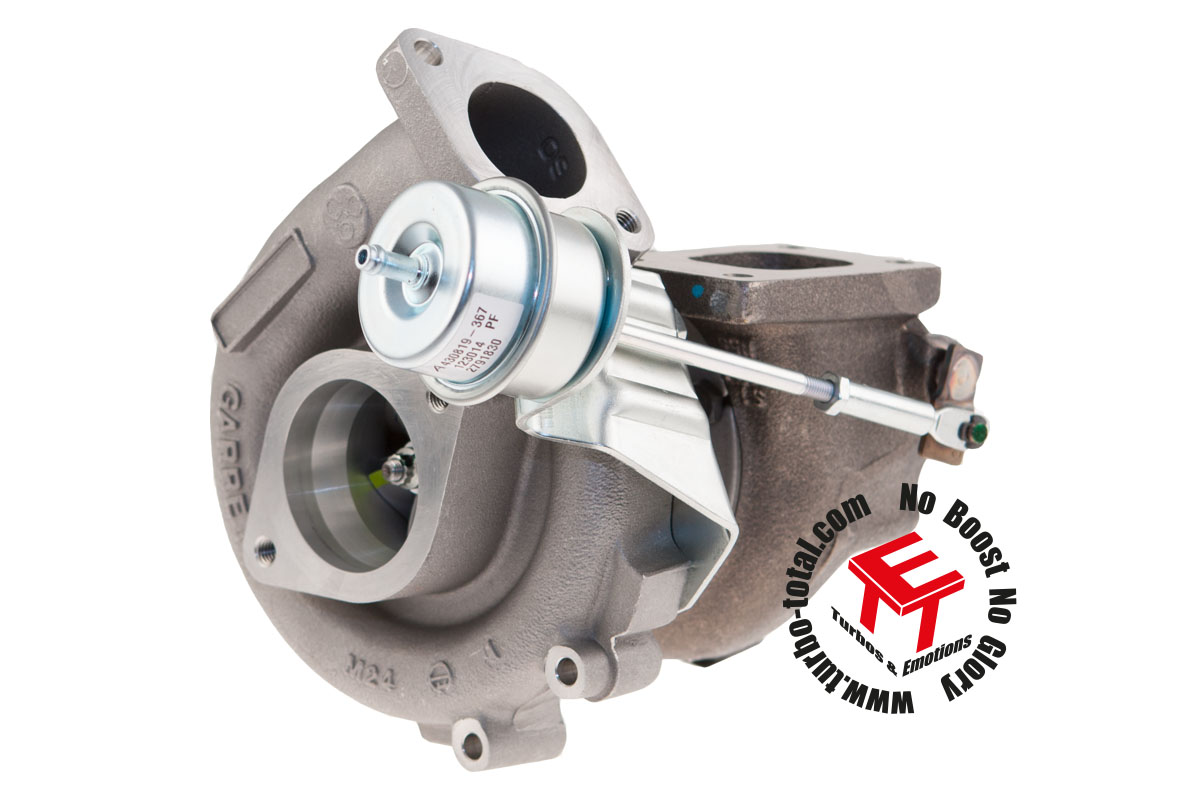

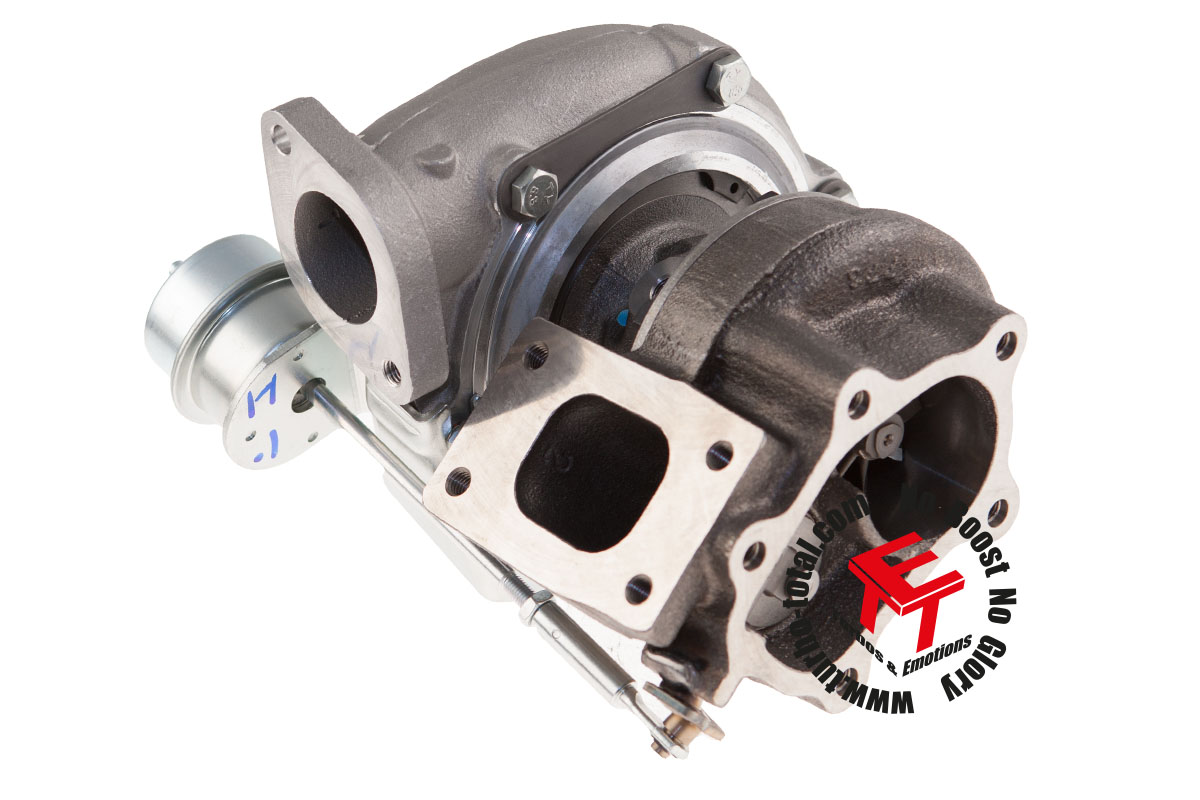

GT2860R Garrett Turbocharger 836026-5005S / 707160-5

GARRETT
Preview: GT2860R Garrett Turbocharger 836026-5005S / 707160-5 Preview: GT2860R Garrett Turbocharger 836026-5005S / 707160-5 Preview: GT2860R Garrett Turbocharger 836026-5005S / 707160-5 Preview: GT2860R Garrett Turbocharger 836026-5005S / 707160-5
GT2860R Garrett Turbocharger 836026-5005S / 707160-5
GT2860R Garrett Turbocharger 836026-5005S / 707160-5
GT2860R Garrett Turbocharger 836026-5005S / 707160-5
GT2860R Garrett Turbocharger 836026-5005S / 707160-5

€1,022.55

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 836026-5005S
Description Drawings Maps Evaluations 0
Description
Horsepower:  250 - 360 hp Displacement:  1,8 - 3,0L 100% Plug and Play Upgrade for Nissan... more
Close menu
GT2860R Garrett Turbocharger 836026-5005S / 707160-5

Horsepower: 250 - 360 hp
Displacement: 1,8 - 3,0L

  • 100% Plug and Play Upgrade for Nissan RB26DETT
  • Dual ceramic ball bearing cartridges
  • Cast compressor wheel
  • Inconel turbine wheel
  • Water- and oil cooled
  • Material Ni-Resist D5S 950°C
  • Old number: 707160-5005S
Compressor side:
Inducer ø
47,20mm		 Exducer ø
60,10mm		 Trim
62		 A/R
0,60
Turbine side:
Inducer ø
53,90mm		 Exducer ø
47,00mm		 Trim
76		 A/R
0,64
Available downloads:

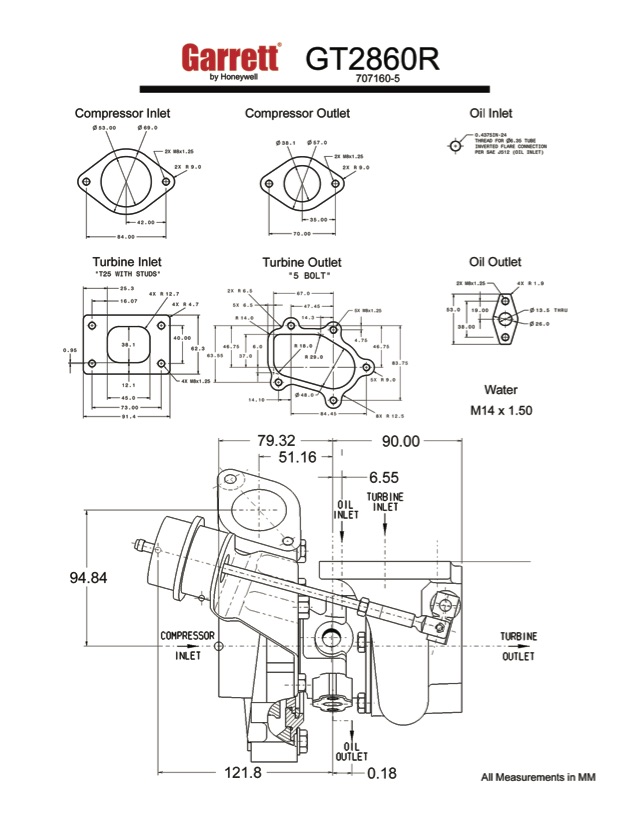

Drawings
Zeichnung als PDF öffnen more
Zurück

Zeichnung als PDF öffnen

Garrett_GT2860R_707160_5_new

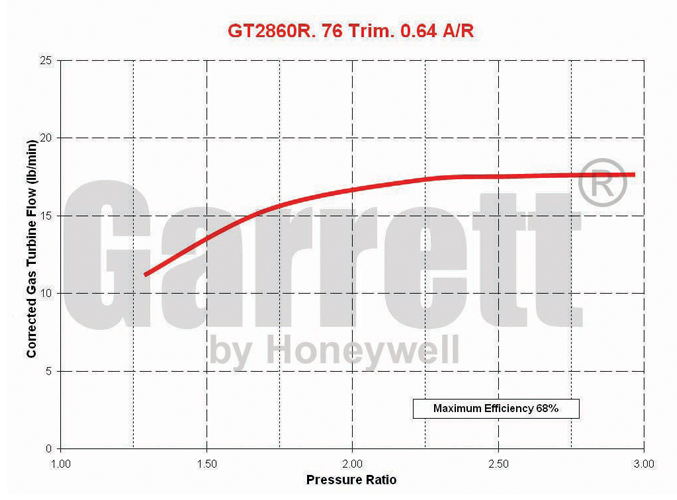

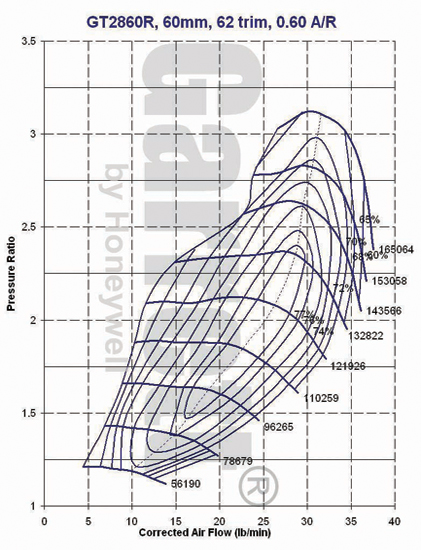

Maps
more
Zurück

707160-5comp707160-5turb

Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "GT2860R Garrett Turbocharger 836026-5005S / 707160-5"
Write an evaluation
Evaluations will be activated after verification.
Please enter these characters in the following text field.

The fields marked with * are required.
