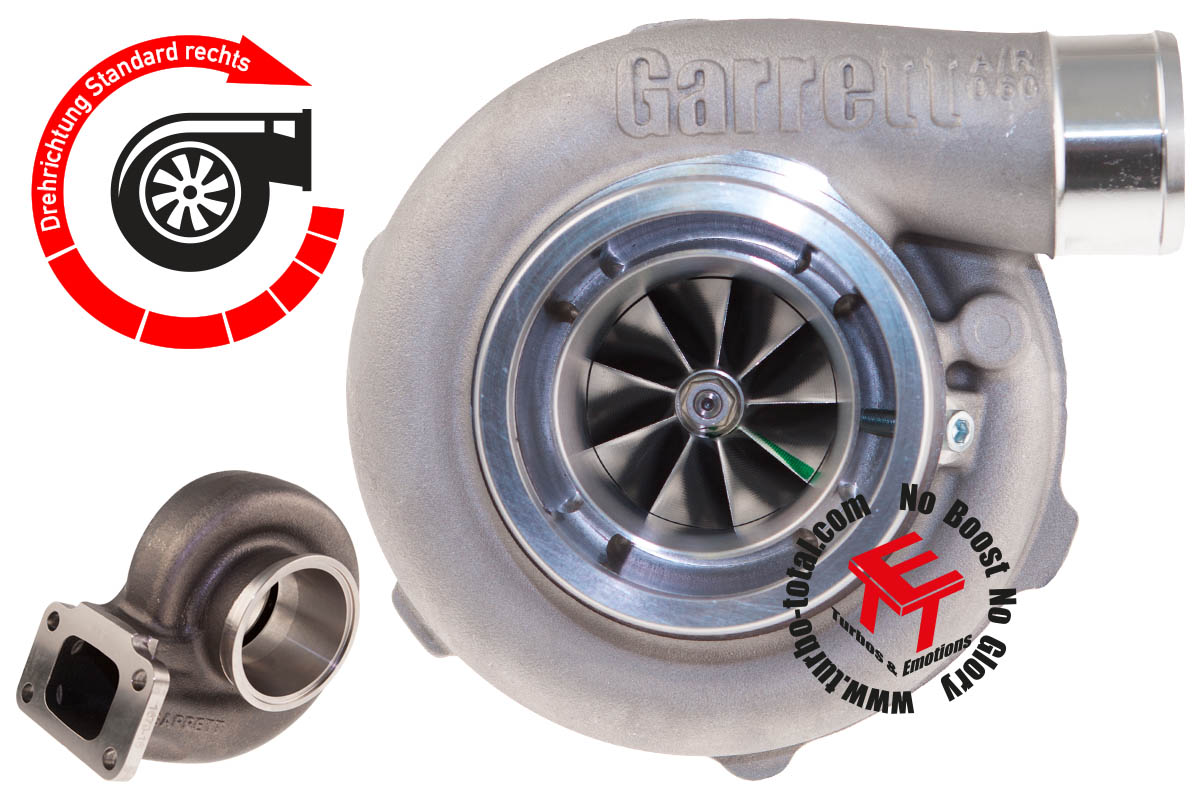

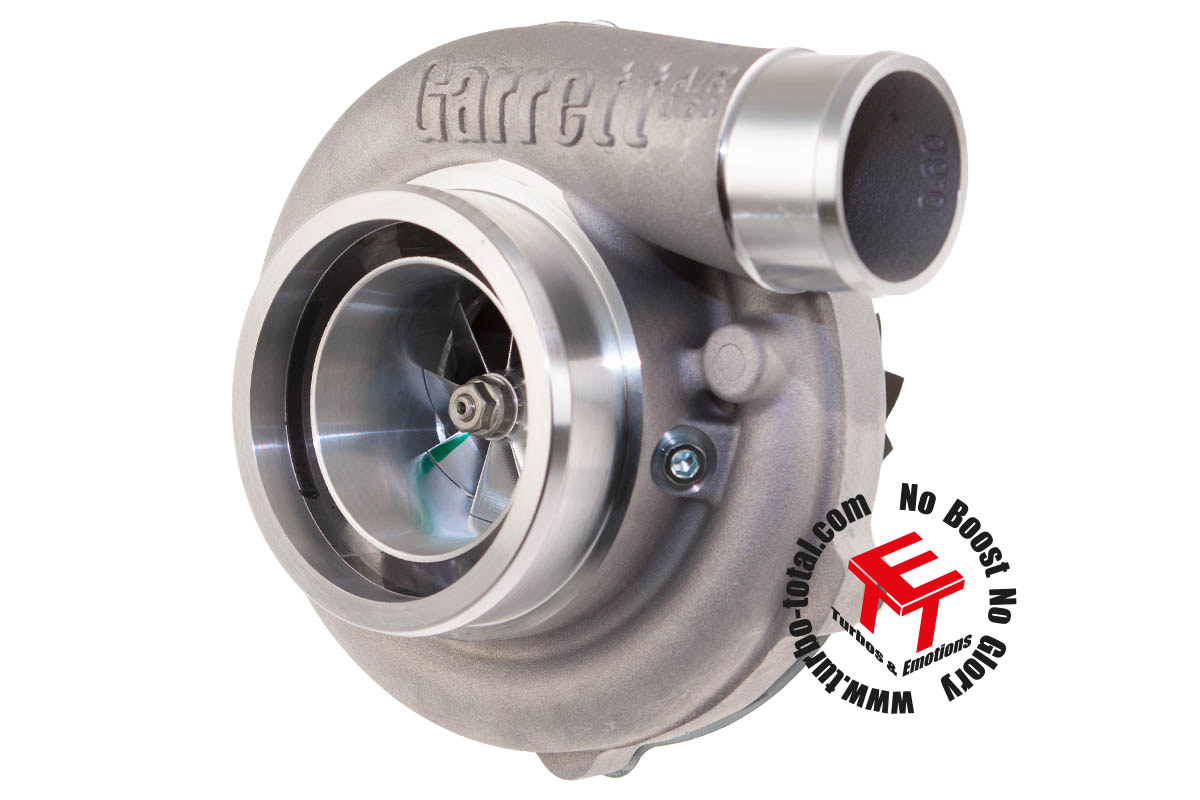

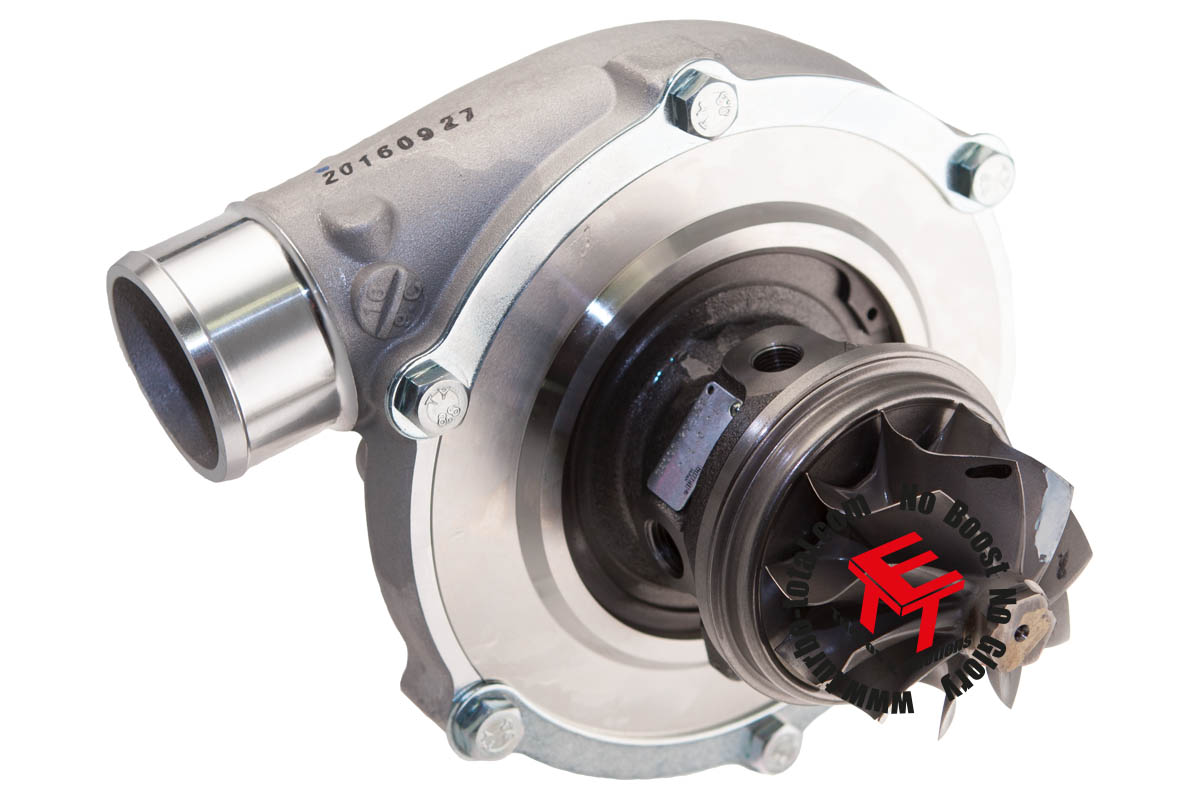

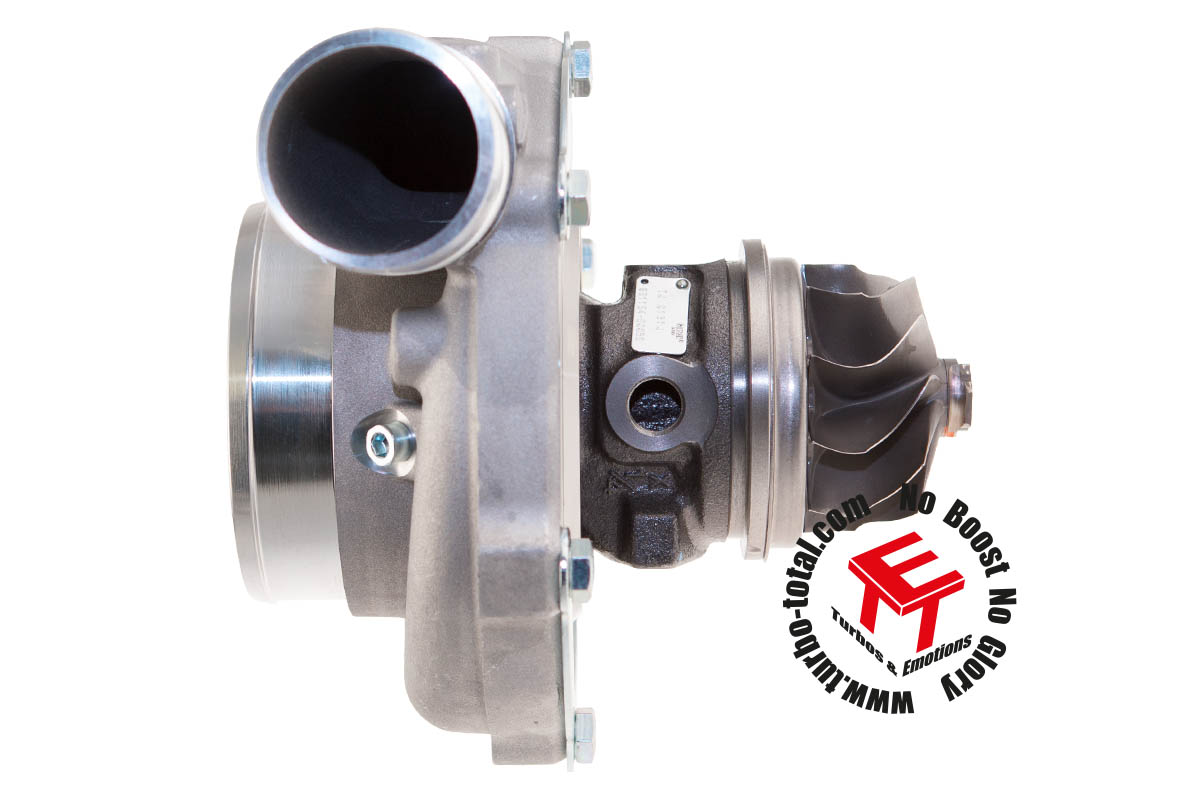

GTX3576R Garrett Gen II Turbocharger 856801-5046S

GARRETT
Preview: GTX3576R Garrett Gen II Turbolader 856801-5046S Preview: GTX3576R Garrett Gen II Turbolader 856801-5046S Preview: GTX3576R Garrett Gen II Turbolader 856801-5046S Preview: GTX3576R Garrett Gen II Turbolader 856801-5046S Preview: GTX3576R Garrett Gen II Turbolader 856801-5046S Preview: GTX3576R Garrett Gen II Turbolader 856801-5046S Preview: GTX3576R Garrett Gen II Turbolader 856801-5046S Preview: GTX3576R Garrett Gen II Turbolader 856801-5046S
GTX3576R Garrett Gen II Turbolader 856801-5046S
GTX3576R Garrett Gen II Turbolader 856801-5046S
GTX3576R Garrett Gen II Turbolader 856801-5046S
GTX3576R Garrett Gen II Turbolader 856801-5046S
GTX3576R Garrett Gen II Turbolader 856801-5046S
GTX3576R Garrett Gen II Turbolader 856801-5046S
GTX3576R Garrett Gen II Turbolader 856801-5046S
GTX3576R Garrett Gen II Turbolader 856801-5046S

€2,423.05
Content: 1 Stück

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 856801-5046S
Description Drawings Maps Evaluations 0
Description
Horsepower: 400 - 750 HP Displacement: 2.0 - 4.5 L T3 Inlet - V-Band Outlet - Single... more
Close menu
GTX3576R Garrett Gen II Turbocharger 856801-5046S

Horsepower: 400 - 750 HP
Displacement: 2.0 - 4.5 L
T3 Inlet - V-Band Outlet - Single Scroll - A/R 1.06

  • Gen II Aero forged milled compressor wheel
  • High-Flow Compressor Housing with integrated speed sensor port
  • Rotation: Standard (Clockwise)
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
  • External Wastegate
  • Replaces: 836047-5001S
Compressor side:
Inducer ø
58.00mm		 Exducer ø
76.00mm		 Trim
58		 A/R
0.60
Turbine side:
Inducer ø
68.00mm		 Exducer ø
62.00mm		 Trim
84		 A/R
1.06

This set contains the following items:

Available downloads:
Drawings
more
Zurück

GTX3576R_DIAGRAM

Maps
more
Zurück

GTX3576R_COMPKLGTX3576R_FLOWKL
