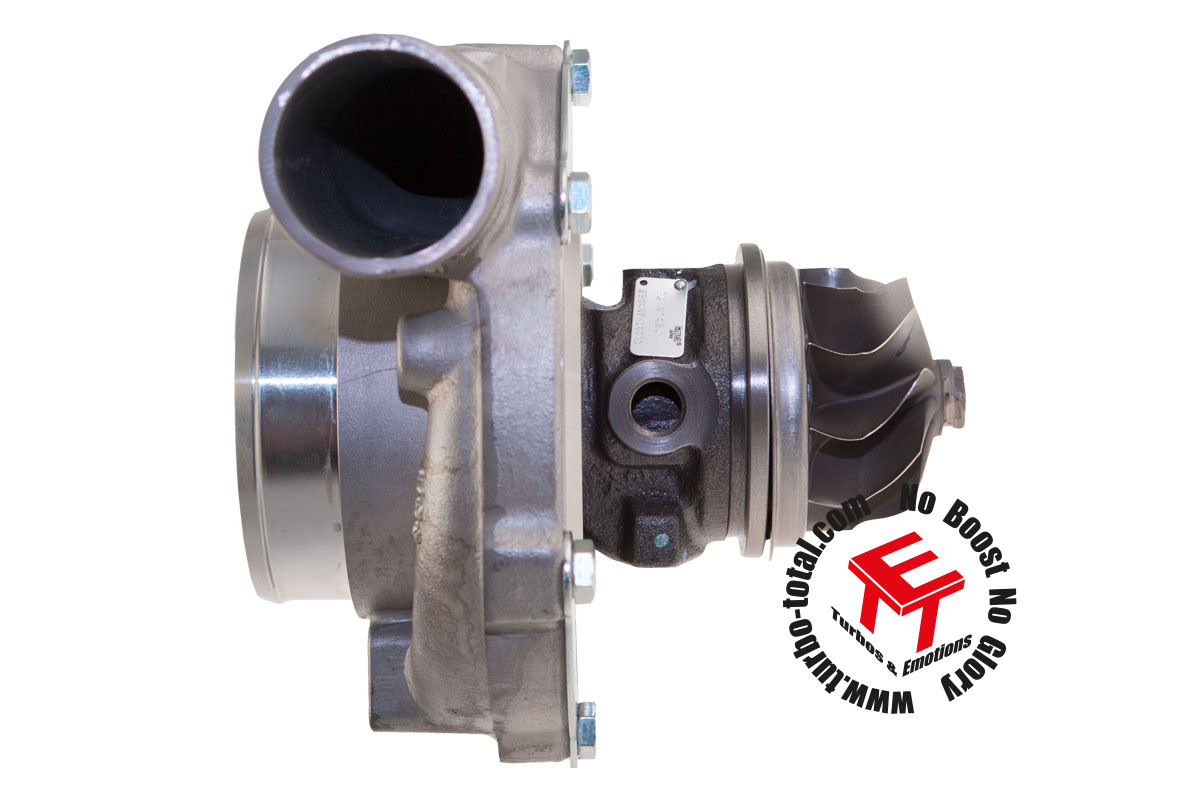

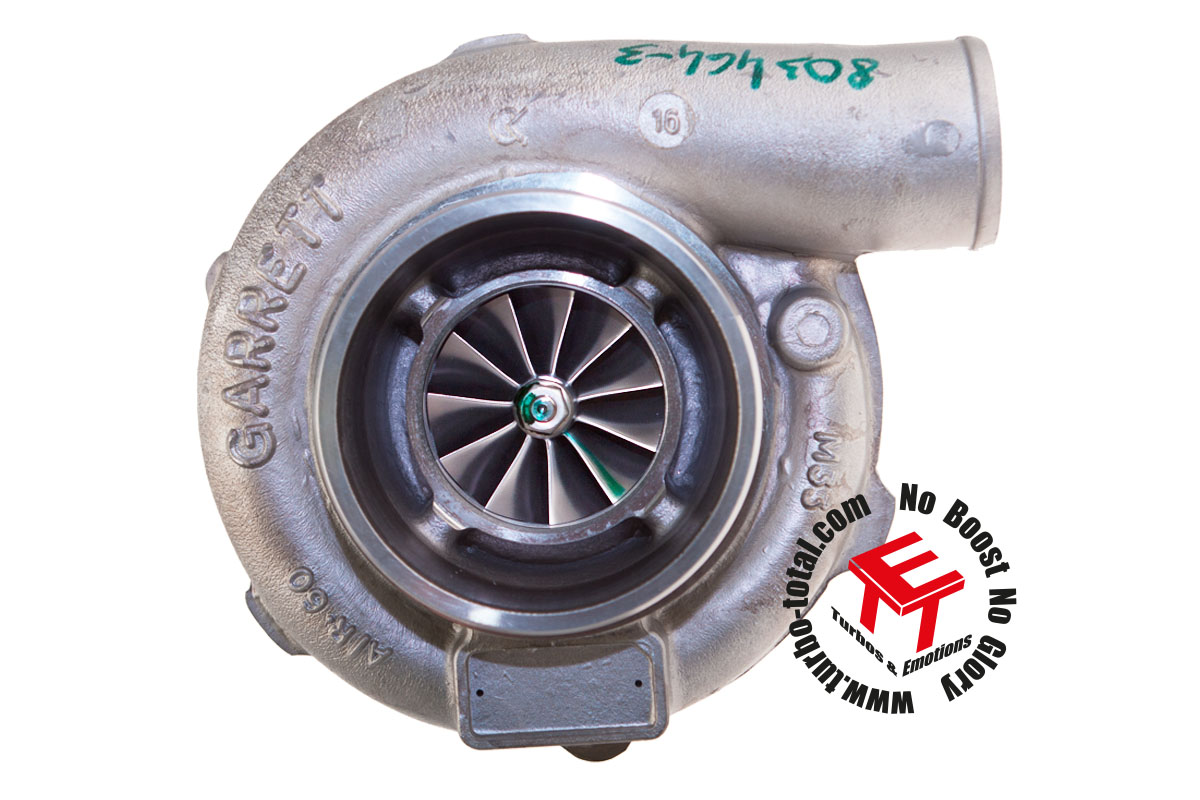

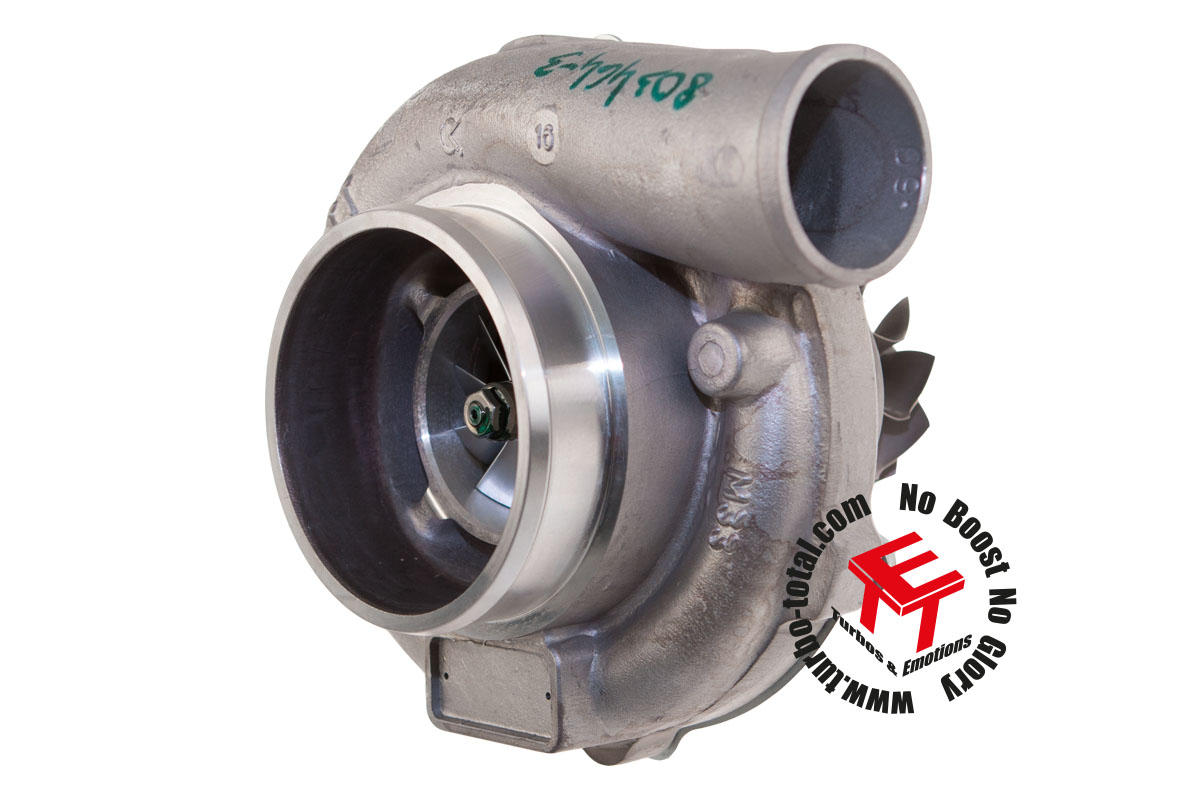

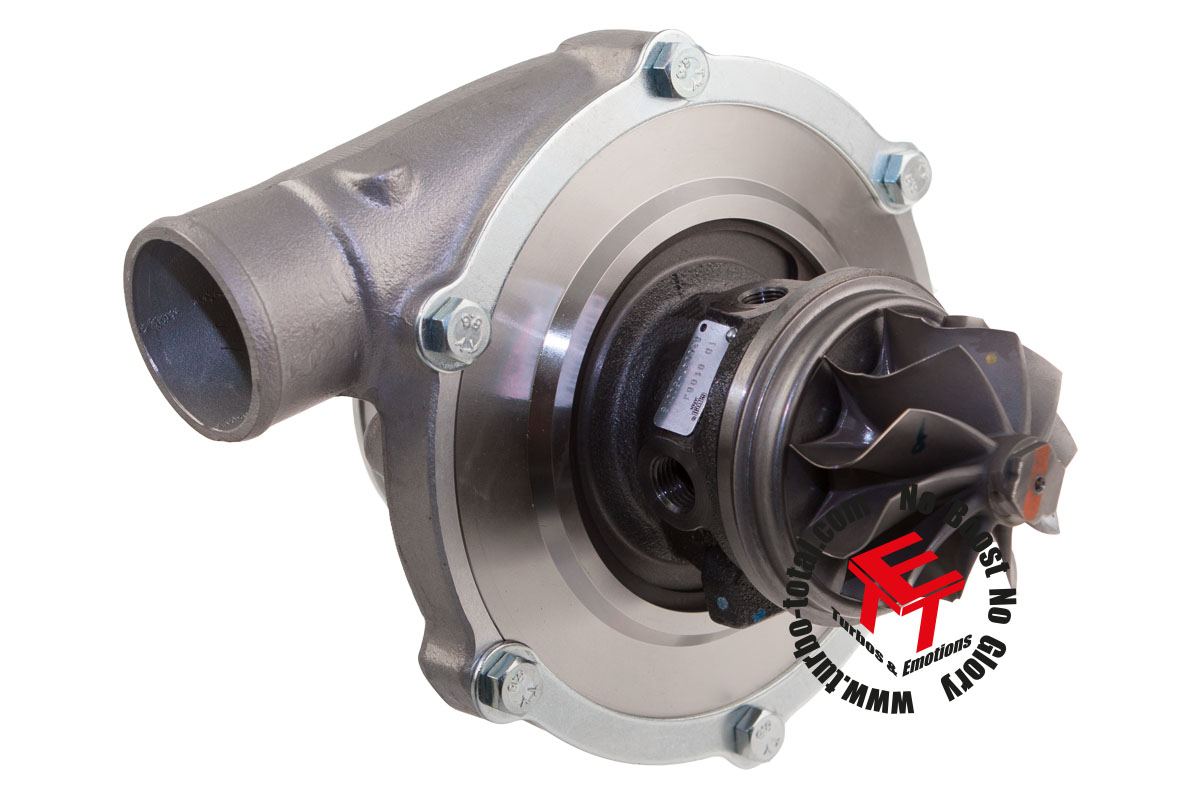

GTX3576R Garrett Turbocharger 836047-5001S

GARRETT
Preview: GTX3576R Garrett Turbolader 836047-5001S 803714-1 Preview: GTX3576R Garrett Turbolader 836047-5001S 803714-1 Preview: GTX3576R Garrett Turbolader 836047-5001S 803714-1 Preview: GTX3576R Garrett Turbolader 836047-5001S 803714-1
GTX3576R Garrett Turbolader 836047-5001S 803714-1
GTX3576R Garrett Turbolader 836047-5001S 803714-1
GTX3576R Garrett Turbolader 836047-5001S 803714-1
GTX3576R Garrett Turbolader 836047-5001S 803714-1

€1,933.95

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 836047-5001S
Description Drawings Maps Evaluations 0
Description
Horsepower: 400 - 600 HP Displacement: 2.0 - 4.5L Original GTX Comp Wheel Aerodynamics... more
Close menu
GTX3576R Garrett Turbocharger 836047-5001S

Horsepower: 400 - 600 HP
Displacement: 2.0 - 4.5L

  • Original GTX Comp Wheel Aerodynamics
  • High-Flow Compressor Housing
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
  • Super Core and Turbine Housing sold separately
  • Old Number: 803714-5001S
Compressor side:
Inducer ø
58.00mm		 Exducer ø
76.60mm		 Trim
58		 A/R
0.60
Turbine side:
Inducer ø
68.00mm		 Exducer ø
62.20mm		 Trim
84		 A/R
--
Available downloads:
Drawings
Zeichnung als PDF öffnen more
Zurück

Zeichnung als PDF öffnen

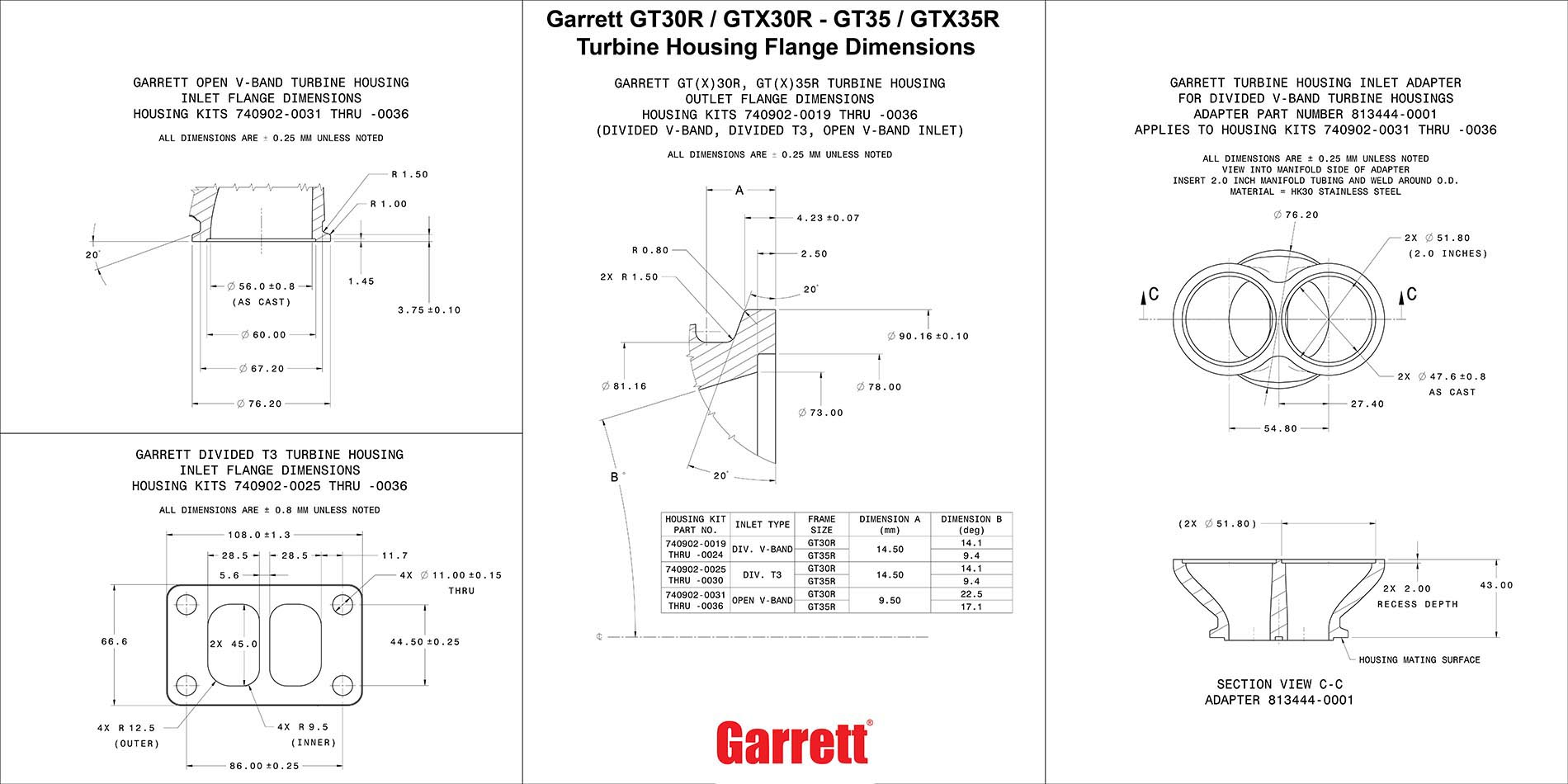

Garrett_GTX30R-GTX35R_New_Turbine_Housing_Flange_Dimensions

Maps
more
Zurück

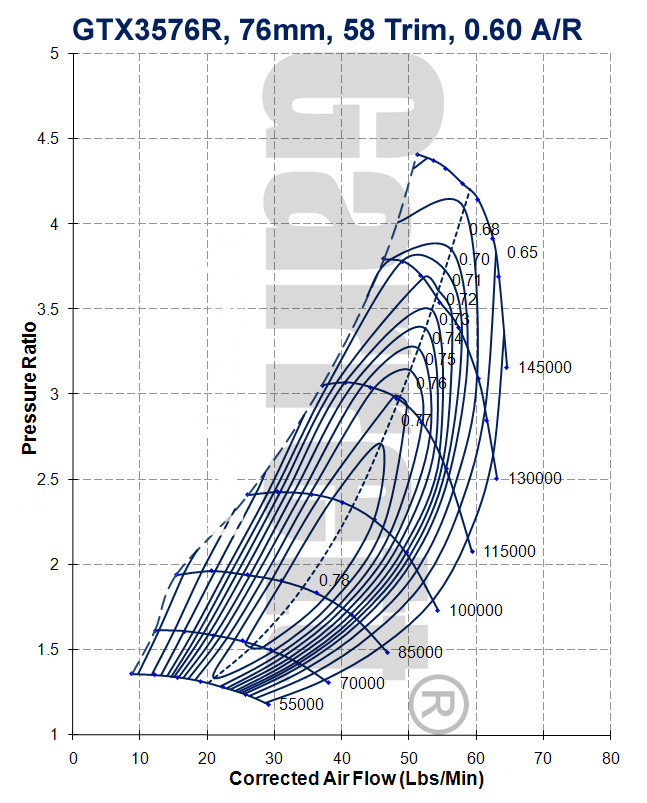

GTX3567RVKGTX3567RTK
