GTX2860R Garrett Gen II Turbocharger 856800-5002S

GARRETT
Preview: GTX2860R Garrett Gen II Turbolader 856800-5002S Preview: GTX2860R Garrett Gen II Turbolader 856800-5002S Preview: GTX2860R Garrett Gen II Turbolader 856800-5002S Preview: GTX2860R Garrett Gen II Turbolader 856800-5002S Preview: GTX2860R Garrett Gen II Turbolader 856800-5002S Preview: GTX2860R Garrett Gen II Turbolader 856800-5002S Preview: GTX2860R Garrett Gen II Turbolader 856800-5002S
GTX2860R Garrett Gen II Turbolader 856800-5002S
GTX2860R Garrett Gen II Turbolader 856800-5002S
GTX2860R Garrett Gen II Turbolader 856800-5002S
GTX2860R Garrett Gen II Turbolader 856800-5002S
GTX2860R Garrett Gen II Turbolader 856800-5002S
GTX2860R Garrett Gen II Turbolader 856800-5002S
GTX2860R Garrett Gen II Turbolader 856800-5002S

€1,468.35
Content: 1 Stück

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 856800-5002S
Description Drawings Maps Evaluations 0
Description
Horsepower: 200 - 475 HP Displacement: 1,4 - 2,5 L V-Band Inlet - V-Band Outlet - Single... more
Close menu
GTX2860R Garrett Gen II Turbocharger 856800-5002S

Horsepower: 200 - 475 HP
Displacement: 1,4 - 2,5 L
V-Band Inlet - V-Band Outlet - Single Scroll - A/R 0.72

  • Gen II Aero forged milled compressor wheel
  • High-Flow Compressor Housing with integrated speed sensor port
  • Rotation: Standard (Clockwise)
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
  • External Wastegate
  • Replaces: 836040-5002S
Compressor side:
Inducer ø
46.00mm		 Exducer ø
60.00mm		 Trim
58		 A/R
0.60
Turbine side:
Inducer ø
54.00mm		 Exducer ø
47.00mm		 Trim
76		 A/R
0.72

This set contains the following items:

Available downloads:
Drawings
more
Zurück

GTX2860R_DIAGRAM

Maps
more
Zurück

GTX2860R_COMPKLGTX2860R_FLOWKL

Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "GTX2860R Garrett Gen II Turbocharger 856800-5002S"
Write an evaluation
Evaluations will be activated after verification.
Please enter these characters in the following text field.

The fields marked with * are required.

Accessories 13 Similar products
Accessories 13
V-Band Flansch Edelstahl G25 GTX29 GTX30 GTX35 Eingang für Garrett
Quick view
V-Band Flange Stainless G25 G30 G35 GT28 GTX28...
€37.70
Universal Ölrücklauf Turbolader G GT GTX GTW EFR 5° Universal Ölrücklauf Turbolader G GT GTX GTW EFR 5°
Quick view
Universal Oil Return for Turbo G GT GTX EFR 5°
€14.35
V-Band Flansch Edelstahl G25 GTX29 GTX30 GTX35 Eingang für Garrett
Quick view
V-Band Flange Stainless GT28 GTX28 Inlet Garrett
€39.60
Turbinengehäuse GT/GTX28 - 0.72 A/R - 76 Trim V-Band Eingang / V-Band Ausgang 827690-0002 Turbinengehäuse GT/GTX28 - 0.72 A/R - 76 Trim V-Band Eingang / V-Band Ausgang 827690-0002 Turbinengehäuse GT/GTX28 - 0.72 A/R - 76 Trim V-Band Eingang / V-Band Ausgang 827690-0002 Turbinengehäuse GT/GTX28 - 0.72 A/R - 76 Trim V-Band Eingang / V-Band Ausgang 827690-0002 Turbinengehäuse GT/GTX28 - 0.72 A/R - 76 Trim V-Band Eingang / V-Band Ausgang 827690-0002
Quick view

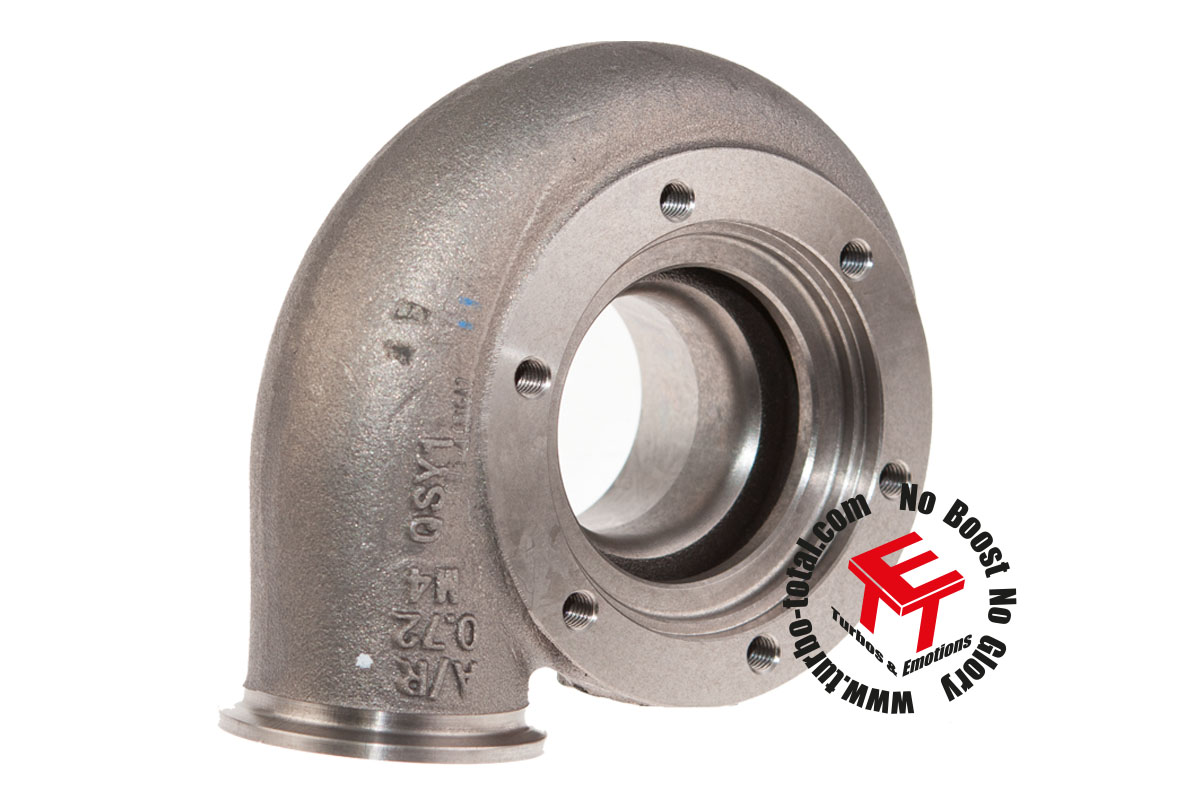

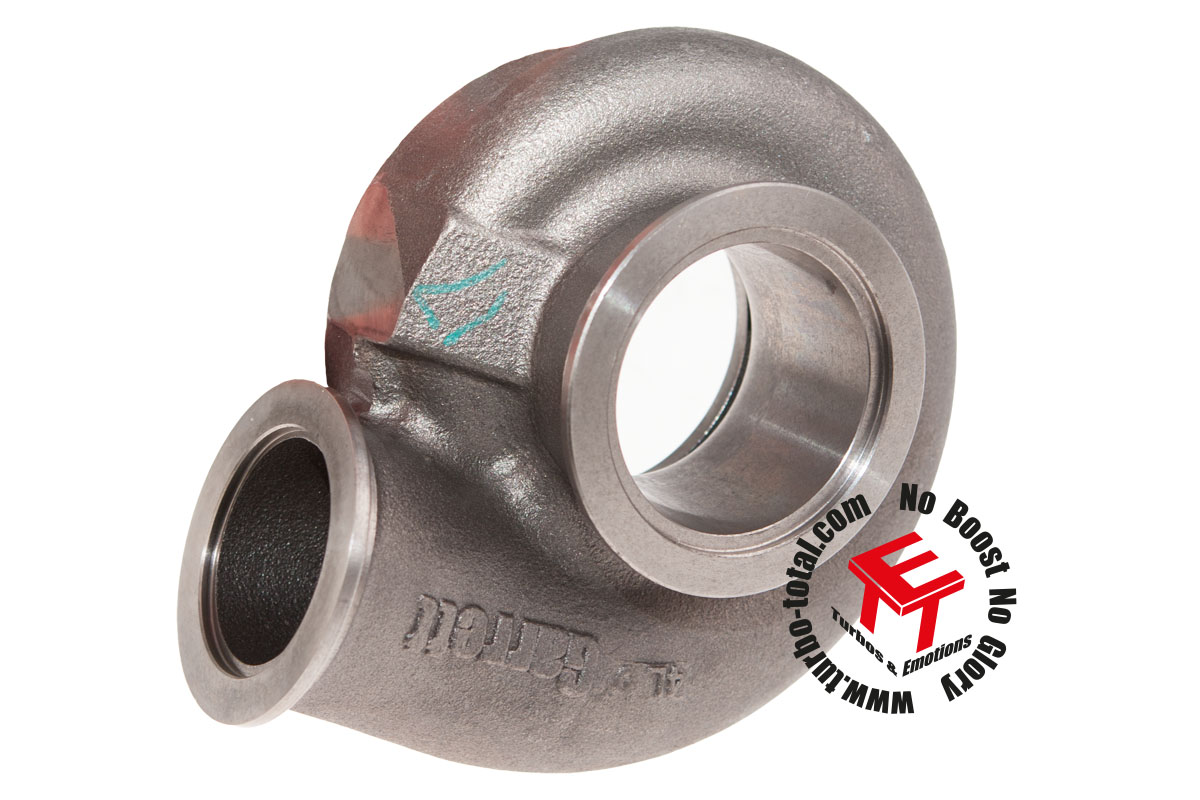

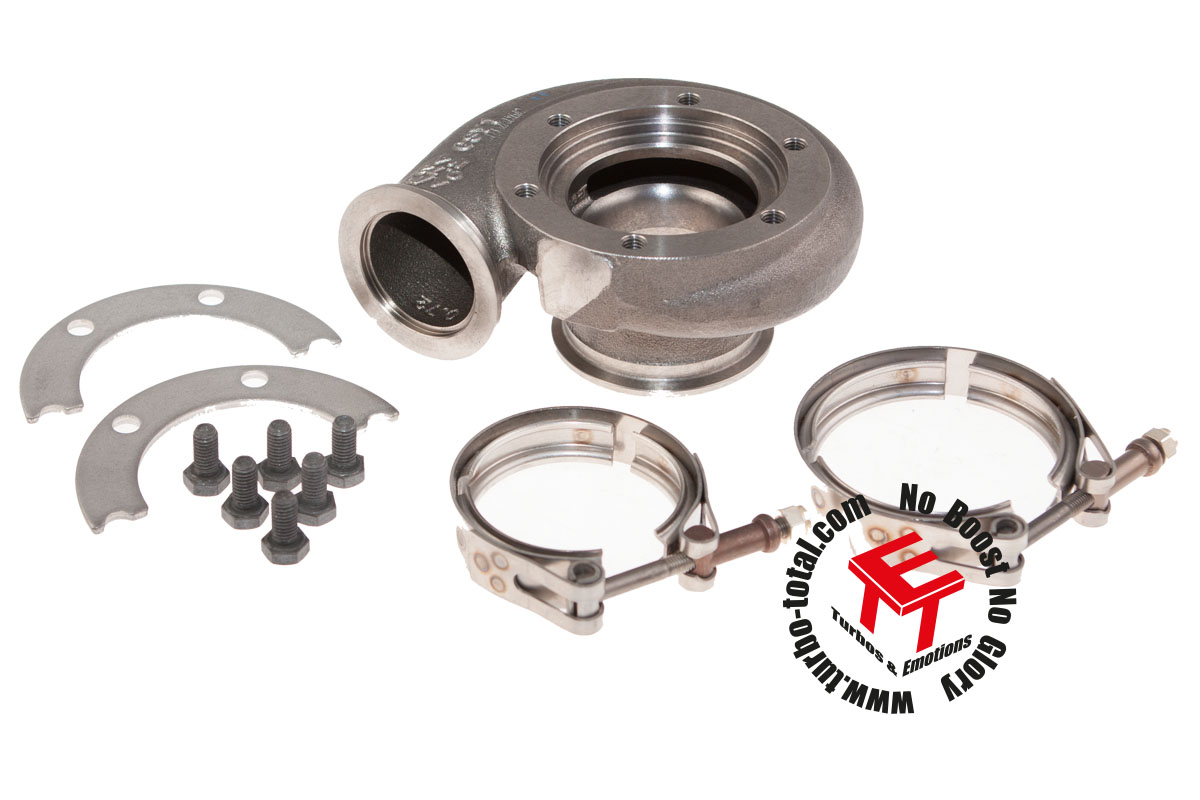

Turbine Housing GT/GTX28 - 0.72 A/R - 76 Trim...
€494.90
T25 Ölrücklauf Dichtung
Quick view
T25 Oelruecklaufdichtung
€1.10
Kupferdichtring 14mm Wasserleitung Anschluss
Quick view
Kupferdichtring 14mm Wasserleitung Anschluss
€0.35
Garrett retaining ring compressor housing GT/GTX 28/30 + T2/25/28 Garrett retaining ring compressor housing GT/GTX 28/30 + T2/25/28
Quick view
Garrett retaining ring compressor housing...
€5.85
Öl-Restriktor für Garrett GT-R Turbolader
Quick view
-4 size Oil inlet restrictor for Garrett GT-R...
€10.25
Hohlschraube M14 x 1.5 für Wasseranschluss Hohlschraube M14 x 1.5 für Wasseranschluss
Quick view
Banjo Bolt M14 x 1,5
€1.45
Turbo Oil and Water Line Kit Dash/AN
Quick view
Turbo Oil and Water Line Kit Dash/AN
€251.00
AEM X-Series True Boost Digitaler Ladedruckregler 30-0352 30-4350 AEM X-Series True Boost Digitaler Ladedruckregler 30-0352 30-4350 AEM X-Series True Boost Digitaler Ladedruckregler 30-0352 30-4350 AEM X-Series True Boost Digitaler Ladedruckregler 30-0352 30-4350
Quick view
AEM X-Series Tru-Boost Controller Gauge
€430.49
Garrett Speed Sensor Kit mit Anzeige 781328-0001 Garrett Speed Sensor Kit mit Anzeige 781328-0001 Garrett Speed Sensor Kit mit Anzeige 781328-0001
Quick view
Garrett Speed Sensor Kit with Gauge 781328-0001
€552.20
Hint!
GTX2860R Garrett Gen II Super Core 849894-5001S GTX2860R Garrett Gen II Super Core 849894-5001S GTX2860R Garrett Gen II Super Core 849894-5001S GTX2860R Garrett Gen II Super Core 849894-5001S
Quick view

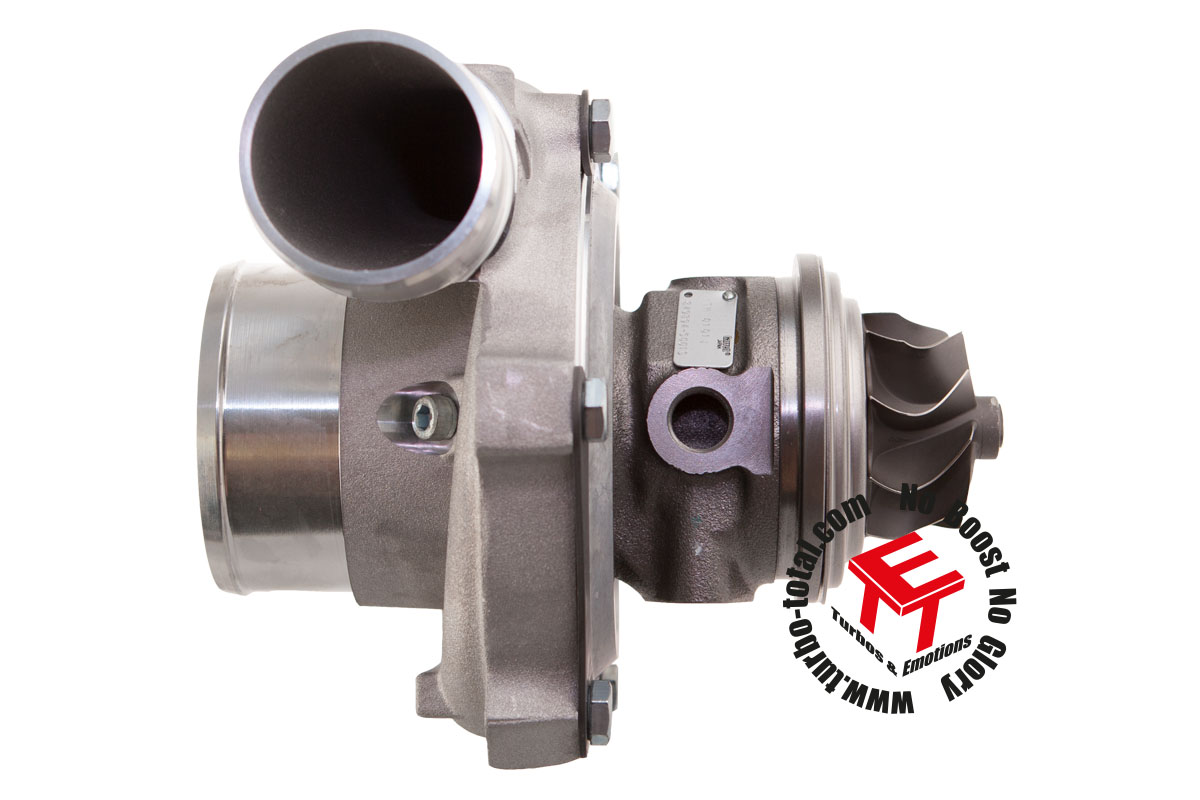

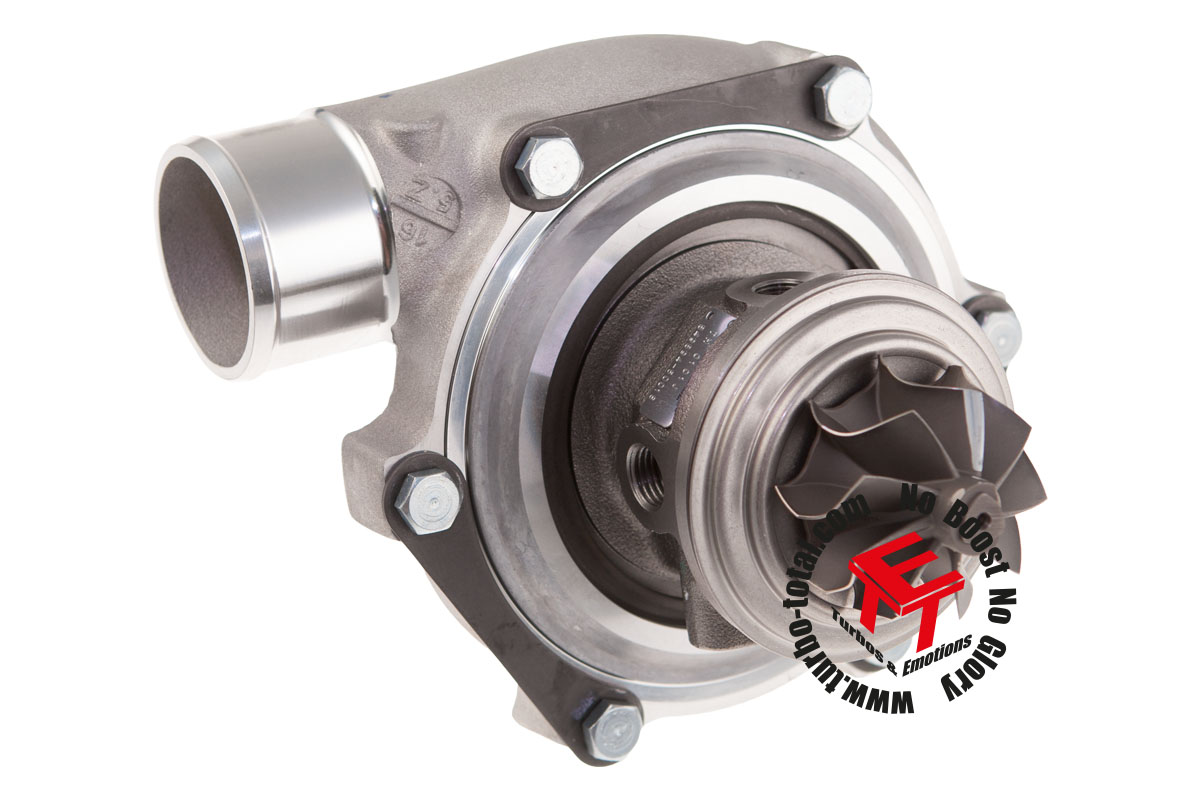

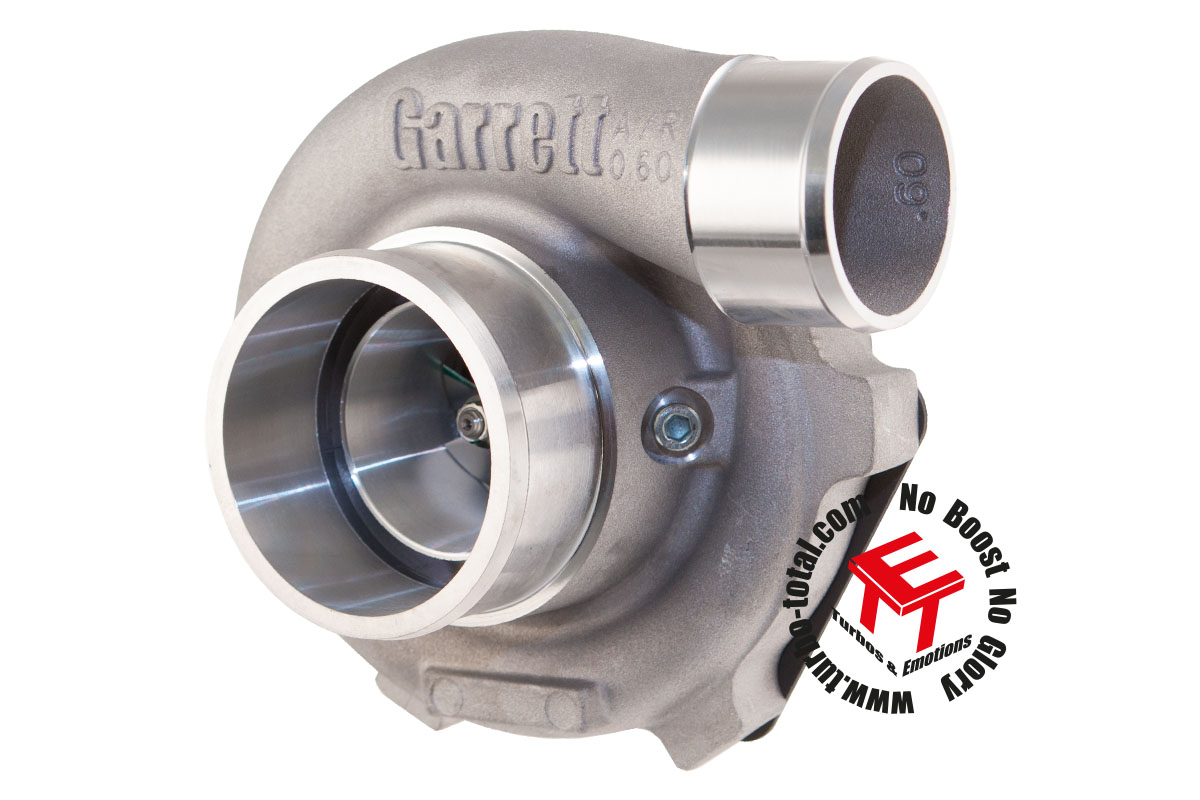

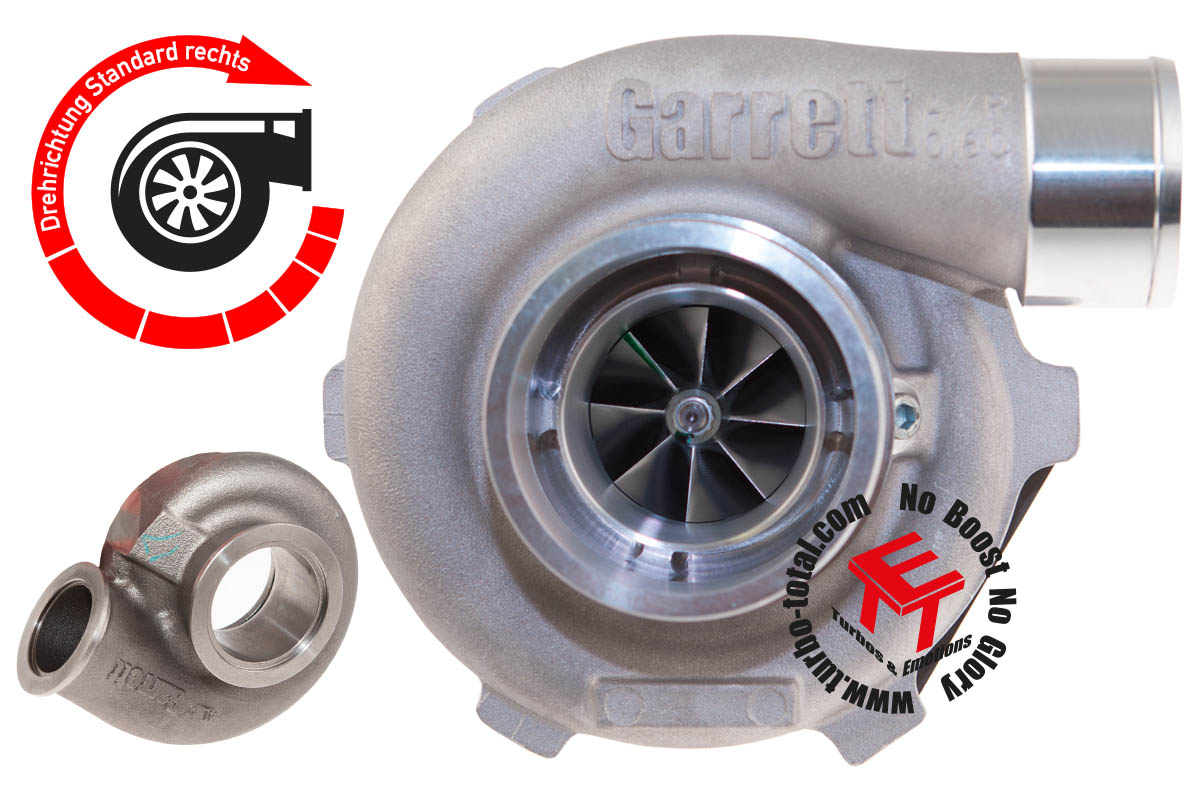

GTX2860R Garrett Gen II Super Core 849894-5001S
