GTX2860R Garrett Gen II Turbocharger 856800-5003S

GARRETT
Preview: GTX2860R Garrett Gen II Turbolader 856800-5003S Preview: GTX2860R Garrett Gen II Turbolader 856800-5003S Preview: GTX2860R Garrett Gen II Turbolader 856800-5003S Preview: GTX2860R Garrett Gen II Turbolader 856800-5003S Preview: GTX2860R Garrett Gen II Turbolader 856800-5003S Preview: GTX2860R Garrett Gen II Turbolader 856800-5003S Preview: GTX2860R Garrett Gen II Turbolader 856800-5003S Preview: GTX2860R Garrett Gen II Turbolader 856800-5003S
GTX2860R Garrett Gen II Turbolader 856800-5003S
GTX2860R Garrett Gen II Turbolader 856800-5003S
GTX2860R Garrett Gen II Turbolader 856800-5003S
GTX2860R Garrett Gen II Turbolader 856800-5003S
GTX2860R Garrett Gen II Turbolader 856800-5003S
GTX2860R Garrett Gen II Turbolader 856800-5003S
GTX2860R Garrett Gen II Turbolader 856800-5003S
GTX2860R Garrett Gen II Turbolader 856800-5003S

€1,621.60
Content: 1 Stück

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 856800-5003S
Description Drawings Maps Evaluations 0
Description
Horsepower: 200 - 475 HP Displacement: 1.4 - 2.5 L T25 Inlet - 5-Bold Outlet - Single... more
Close menu

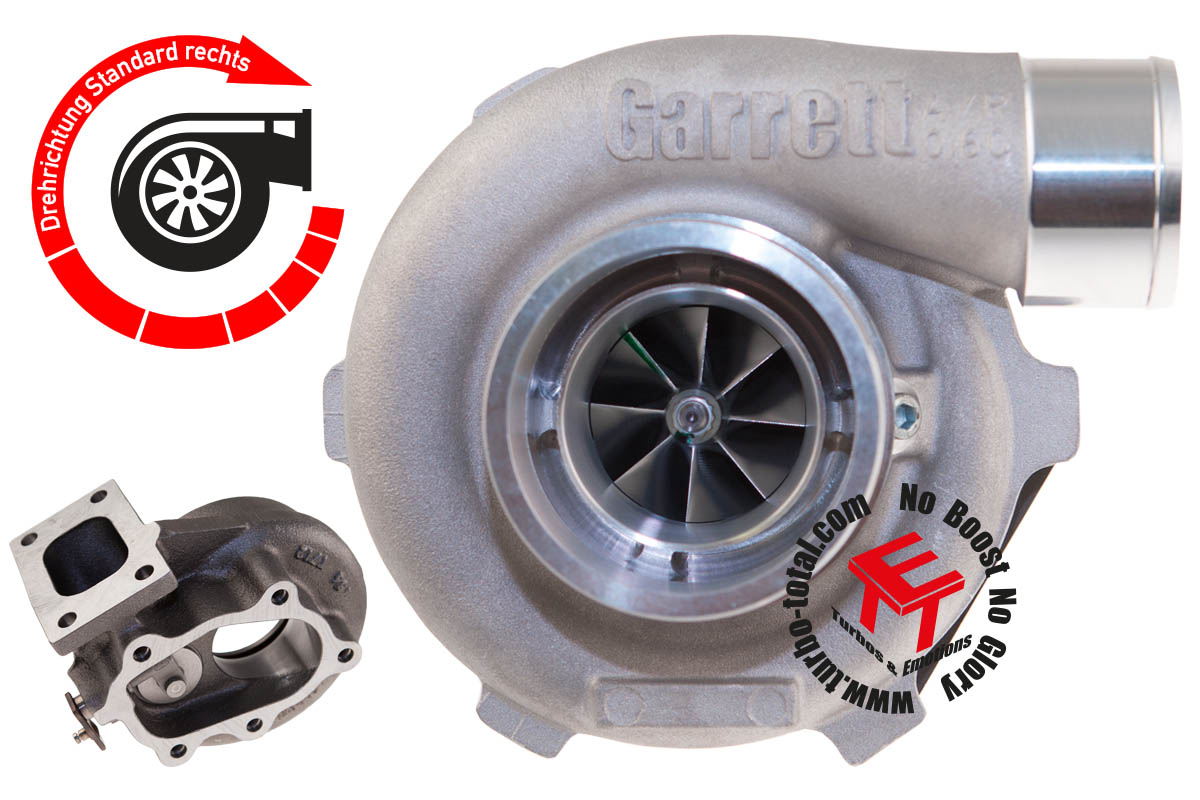

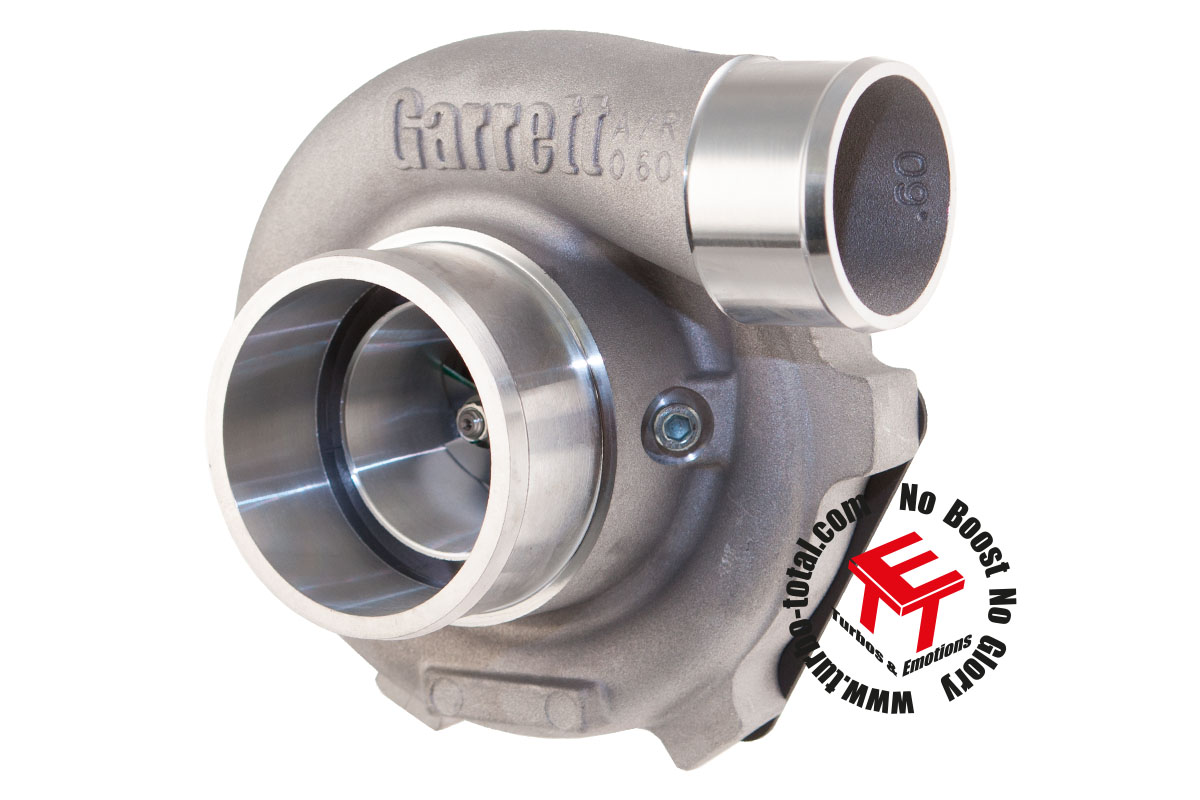

GTX2860R Garrett Gen II Turbocharger 856800-5003S

Horsepower: 200 - 475 HP
Displacement: 1.4 - 2.5 L
T25 Inlet - 5-Bold Outlet - Single Scroll - A/R 0.64

  • Gen II Aero forged milled compressor wheel
  • High-Flow Compressor Housing with integrated speed sensor port
  • Rotation: Standard (Clockwise)
  • Dual ceramic ball bearing cartridges
  • Inconel Turbine Wheel
  • Water- and Oil Cooled
  • External Wastegate
  • Replaces: 836040-5002S
Compressor side:
Inducer ø
46.00mm		 Exducer ø
60.00mm		 Trim
58		 A/R
0.60
Turbine side:
Inducer ø
54.00mm		 Exducer ø
47.00mm		 Trim
76		 A/R
0.64

This set contains the following items:

Available downloads:
